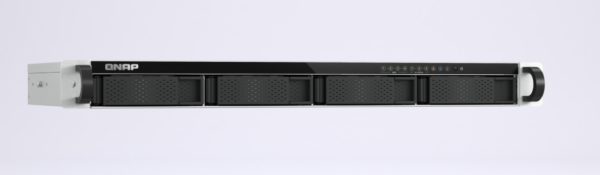

QNAP 1U 4-bay 3.5″ SATA + 3 x E1.S

Description

• Data rate: 5 Gbps
• Speed: Gigabit Ethernet
• Reach: 100 m
• QNAP 1U 4-bay 3.5" SATA + 3 x E1.S Processor 4-core Intel Atom x7405C, up to 3.4 GHz Processor architecture 64-bit x8…

Read full description below:

Full name:

QNAP 1U 4-bay 3.5″ SATA + 3 x E1.S

Full description:

Processor 4-core Intel Atom x7405C, up to 3.4 GHz
Processor architecture 64-bit x86
Floating point unit
Encryption engine (AES-NI)
System memory 8 GB SODIMM DDR5 with in-band error correction (ECC) support
Maximum memory 16 GB (1 x 16 GB)
Memory slot 1 x SODIMM DDR5
Flash memory 8 GB (dual boot protection)
Drive bay 4 x 3.5-inch SATA 6 Gb/s, 3 Gb/s
3 x E1.S up to 15 mm (M.2 2280 adapter pre-installed for each slot)
Drive compatibility 3.5-inch SATA hard drives
2.5-inch SATA solid-state drives Solid-state drives
E1.S NVMe PCIe
M.2 2280 NVMe PCIe SSDs
Hot-swappable (M.2 SSD not supported)
M.2 Slot 3 x E1.S up to 15mm (M.2 2280 support adapter pre-installed for each slot)
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5Gbps/1Gbps) 2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port Optional via QXG-ES10G1T
Wake on LAN (WOL)
Large bezel
USB 2.0 Port 1
USB 3.2 Gen 2 Port (10Gbps) 1 x USB 3.2 Gen 2 Type-A 10Gbps
Form Factor 1U Rack Mountable Low-depth rack
LEDs Power/Status, LAN, USB, HDD1-4, E1.S/PCIe SSD1~3
Buttons Power, Reset
Dimensions (HxWxD) 43 × 430 × 292.1 mm
Weight (net) 4.51 kg
Operating temperature 0–40 °C (32–104 °F)
Storage temperature -20 – 70 °C (-4 °F – 158 °F)
Relative humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power supply 150 W, 100-240 V
Fan 3 x 40 mm
System warning Buzzer
Standard warranty 3
Maximum number of simultaneous connections (CIFS) – with maximum volume memory 1500

Additional info:

1U 4-bay 3.5" SATA + 3 x E1.S/PCIe M.2 2280 short depth 12" rackmount NAS, Intel Atom x7405C quad-core, 8GB RAM SODIMM DDR5 (1 x DDR5 SODIMM slots, Max. 16GB), 2 x M.2 PCIe Gen3 x1 slots, 2 x 2.5GbE, 1 x USB 3.2 Gen1, 1 x USB 2.0, 1 x 150W PSU
