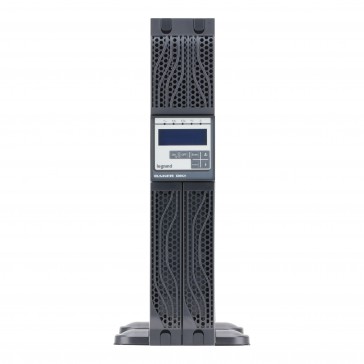

Daker DK Plus convertible UPS with battery – Single phase VFI – 3000 VA – 2700 W

Description

Input voltage
176-280 V

Primary frequency
47.5–63 Hz

The number of phases of the primary winding
1

Output voltage
228-232 V

Secondary frequency
50-60 Hz

Effective power output
2700 Watts

Full power output
3000 VA

The number of phases of the secondary winding
1

SNMP
Yes

Type
of AC voltage

Height
440 mm

Width
88 mm

Depth
600 mm

Weight
30 kg

Suitable for network management
Yes

USB technology
Online

Type of construction
Device with a diameter of 482.6 mm (19 inches)

Max. output voltage distortion (linear load)
3 %

The output power factor
is 0.9

Overall efficiency
92 %

Efficiency in eco-mode
98 %

Potential-free switch contact
No

Automatic shutdown function
No

Input connection
C20

Number of output connections C13
6

Number of output connections C19
1

Degree of protection (IP)
IP21

Operating/setting temperature
0-40 °C

Storage temperature
0-50 °C

Power supply current
20-20 A

Sound level
50 dB

Type of load
Universal

With an outlet
Yes

Contains batteries and/or battery
Yes
