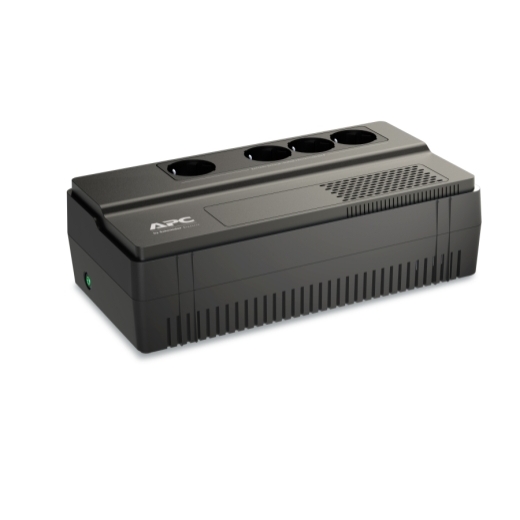

APC EASY UPS BV 1000VA, AVR, Schuko Outlet, 230V

Description

Main features
– Output power: 600 Watts / 1.0kVA
– Output connectors:
(4) Schuko CEE 7 (Battery backup)
– Rated output voltage: 230V
– Rated input voltage: 230V
– Input connection type: Schuko CEE 7/7P
– Cord length: 1.5meters

Exit
– Maximum set power(W): 600 Watts / 1.0kVA
– Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Not synchronized
– Topology: Linear-interactive
– Type of voltage form: Step approximation of a sine wave
– Switching time: 6 ms typical : 10 ms maximum

Entrance
– Input frequency: 50/60 Hz +/- 5 Hz Auto detection
– Input voltage range during mains operation: 170 – 280V
– Number of power cables: 1

Batteries and battery life
– Battery Type: Lead-acid battery
– Typical recharge time: 8 hours
– Rated battery voltage: 12 V
– Expected battery life (years): 3 – 5

Communication and administrative tools
– Control panel: LED display with indicators on line (mains operation) : on battery (battery operation)
– Sound signal: Signal of switching to battery operation mode : special signal of battery depletion : continuous overload signal

Surge protection and noise filtering
– Burst energy Rating: 156joules

Physical parameters
– Maximum height: 93MM, 9.25cm
– Maximum width: 161MM, 16.05cm
– Maximum depth: 305MM, 30.5cm
– Net weight: 5.7KG
– Gross weight: 6.0KG
– Dimensions of the TRANSPORT package 237x143x373MM
– Color: Black

Environmental Parameters
– Operating temperature: 0 – 40 °C
– Operating range of relative humidity: 0 – 90 %
– Operating altitude range above sea level: 0 – 2032.1meters
– Storage temperature: -20 – 50 °C
– Relative humidity of storage: 0 – 90 %
– Storage altitude above sea level: 0 – 15240 meters
– Acoustic noise level at a distance of 1 m from the surface of the device: 40.0dB(A)
– Protection class: IP20

Accordance
– Compliance with the requirements: CE, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.
