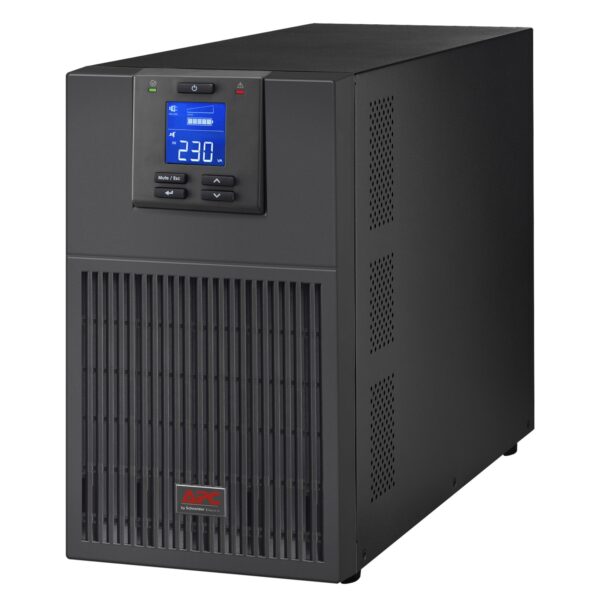

APC Easy UPS 3000VA 230V

Description

Main Features:
– Main input voltage – 230 B
– Other input voltage – 220 B; 240 B
– Main output voltage – 230 V
– Other output voltage – 220 V; 240 V
– Rated power [W] – 2400 W
– Rated power – 3000 VA

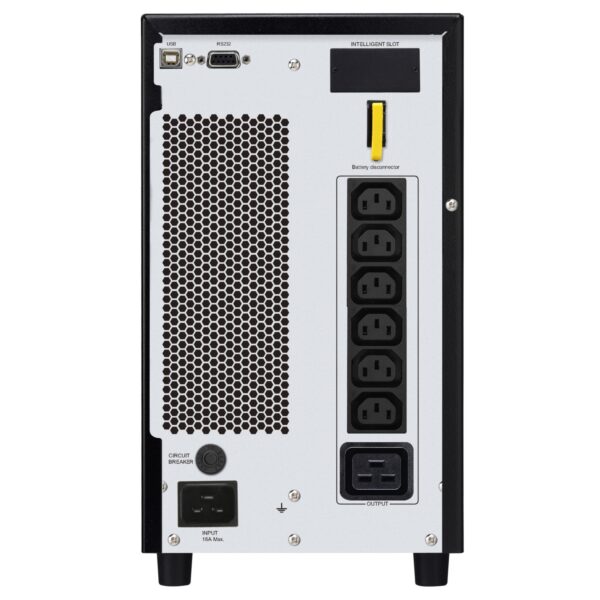

– Input Connection Type – IEC 60320 C20
– Output connection type – 6 IEC 60320 C13; 1 IEC 60320 C19
– Length – 1.5 m
– Number of cables – 1

Common:
– Number of slots occupied by power modules – 0
– Number of slots unoccupied by power modules – 0
– Spare – No

Physical parameters:
– Color – Black (RAL 7010)
– Height 33.6 cm
– Width 19 cm
– Depth 42.5 cm
– Net weight 26.8 kg
– Installation location – Front
– Type of fastener – No preference
– Installation design – Non-stationary
– USB-compatible – Yes
– Mounting position – Vertical

Input:
– Input voltage limits – 110…285; Half load 160…280 V full load
– Network frequency – 40-70 Hz auto-detection

Output:
– Maximum set power (VA) – 3000 VA
– Maximum set power (W) – 2400 W
– Output frequency – 50/60 Hz +/- 3 Hz synchronized with the power grid
– Harmonic distortion – 3 %
– UPS type – Topology double conversion
– Type of voltage form – Sinusoidal signal
– EFFICIENCY – 88% (full load)
– Additional information – Selection of output voltage 220, 230 or 240 V
– Bypass type – Internal bypass (automatic and manual)
– Cross factor – 3:1

Accordance:
– CE; UKCA; EAC; TISI
certificates – Standards – EN/IEC 62040-1:2019/A11:2021;
EN/IEC 62040-2:2006/AC:2006;
EN/IEC 62040-2:2018;

Environmental parameters:
– Ambient operating temperature – 0…40 °C
– Relative humidity – 0…95% without condensation
– Altitude above sea level – 0…3000 m
– Ambient temperature during storage: -20…50 °C
– Relative humidity of storage – 0…95% without condensation
– Storage height – 0…15000 m
– Acoustic level – 50 dBA
– Heat transfer – 910 ‰
– Degree of protection IP – IP20

Batteries and battery life:
– Battery Type – Lead acid battery
– Battery voltage – 72 V
– Pre-installed batteries – 0
– Free battery compartments 0
– Typical recharge time of 4 h
– Battery life 3…5 year(s)
– APCRBCV205 spare battery
– Charger power (W) – 60 W rated

Communication tools and admin tools:
– Alarm – Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
– Free slots – 1

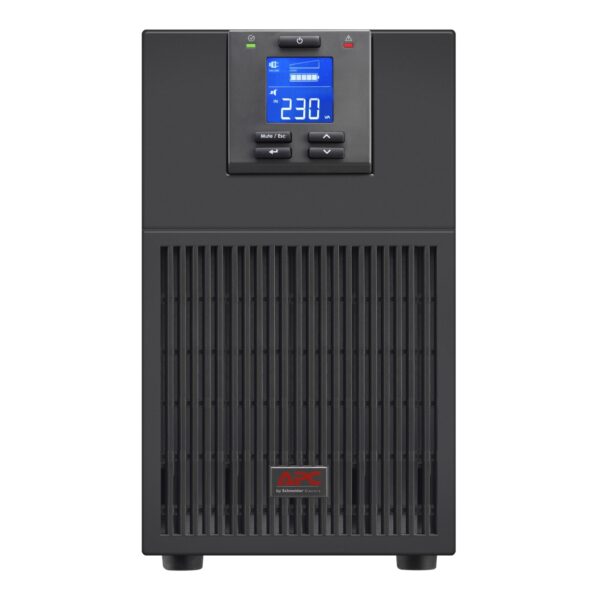

– Control panel – Multifunctional LCD status and control panel

Protection against voltage surges and filtrations:
– Rating on the level of absorbed energy vsp – 600 J
