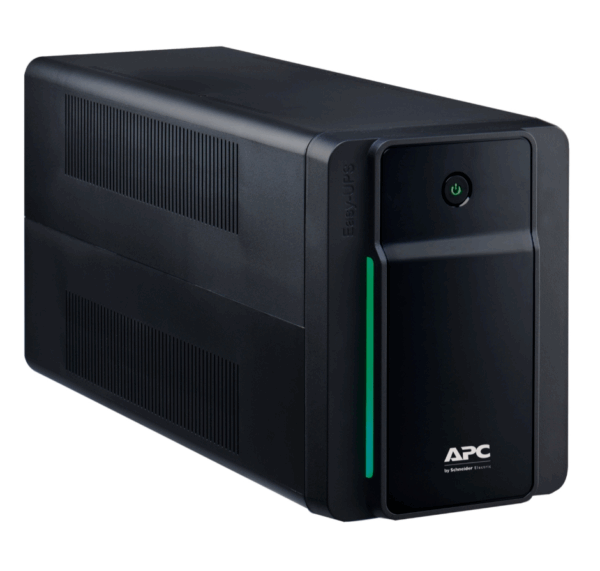

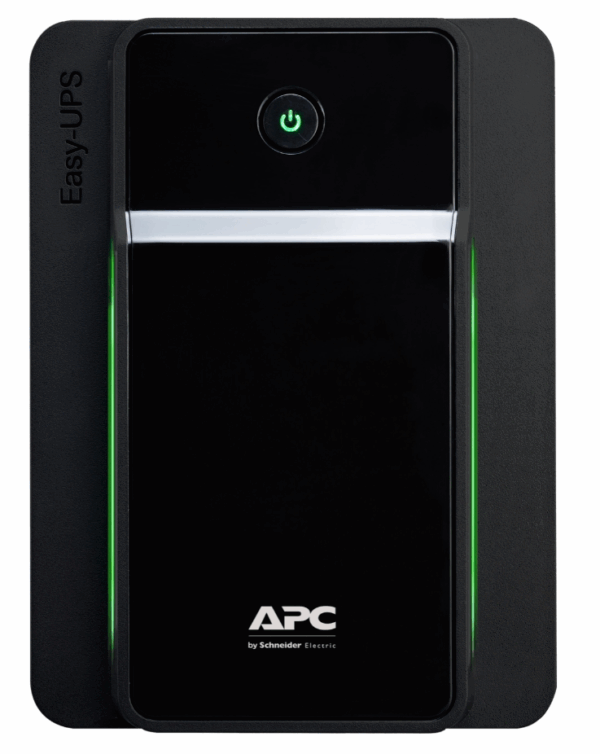

APC Easy UPS 2200VA, 230V, AVR, Schuko Sockets

Description

Max. capacity used
100 %

Main Input Voltage
230 B Alternating current 1 phase

Main Output Voltage
230 V AC 1 phase

Rated power [W]
1200 W

Rated power
2200 VA

Input Connection Type
Schuko

output connection type
4 Schuko

Length
1,22 m

Number of cables
1

Battery Type
Lead-acid battery

Equipment included
User Manual

Pre-installed batteries
0

Free battery compartments
0

Typical recharge time
8 h

Battery voltage
24 V

Battery capacity
9,0 Ah

battery life
2…3 year(s)

Spare battery
APCRBC177

The possibility of increasing the autonomy time
0

The maximum value of the autonomy time
240 min

The number of unoccupied power modules
is 0

The number of slots occupied by power modules
is 0

reserve
No

UPS Size
WS

Colour
Black

Height
19 cm

Width
14 cm

Depth
39 cm

Net weight
12,2 kg

Mounting method
Paul

Type of fastener
No preference

Installation execution
Non – stable

two-support mount 0

USB-compatible
No

Maximum set power (W)
1200 W

Output frequency
50/60 Hz +/- 1 Hz synchronized with the power grid

Type of UPS
Linear-interactive

Type of voltage form
Stepwise approximation of a sine wave

Autonomy time at full load
00:01:00 1200 W

Graphic display
1

Autonomy time at half load
00:08:30 600 watts

Maximum specified power (VA)
2200 VA

Switching time
The typical time is 6 ms, the maximum is 10 ms.

Ambient temperature
0…40 °C

Relative humidity
0…95 % without condensation

Altitude above sea level
0…3000 m

Ambient temperature during storage
-15…40 °C

Relative humidity of storage
0…95 % without condensation

Storage height
0…3000 m

Acoustic level
40 dBA

Degree of protection IP
IP20
