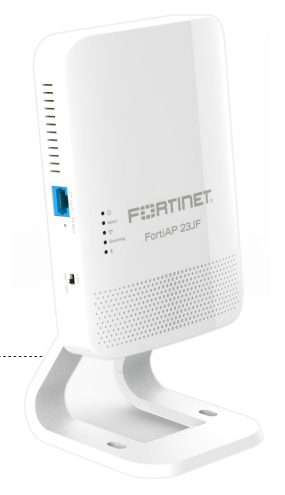

Wall Plate AP – Dual radio (802.11 b/g/n/ax 2×2 MU-MIMO and 802.11 a/n/ac/ax 2×2 MU-MIMO), internal antennas, 4 x 10/100/1000 RJ45 port (1x 802.3at Po

Description

Type of equipment
Stenjek for home / desktop AP

Number of radios
3+1 BLE

Number of antennas
4 single-band Wi-Fi + 1 dual-band scan + 1 single-band BLE/ZigBee 2.4GHz

Antenna type and maximum gain
Antenna on the printed circuit board

Dual-band
4.0 dBi in the 2.4GHz band and 4.0 dBi in the 5 GHz band

3.5dBi BLE antenna in the 2.4GHz band

Frequency bands (GHz)
2,400–2,4835, 5,150–5,250, 5,250–5,350, 5,470–5,725, 5,725–5,850

Radio 1 Features
2.4GHz frequency range

Channel width
20/40 MHz

Modulation
BPSK, QPSK, 64/256/1024 QAM

MIMO Chains
2×2 Service

Radio 2 Features
Frequency range 5.0 GHz

Channel width
20/40/80 MHz

Modulation
BPSK, QPSK, 64/256/1024 QAM

MIMO Chains
2×2 Service

Radio 3 Features
The frequency bands are 2.4GHz and 5.0 GHz. Chains

MIMO
scanning of the 1×1 frequency.

Maximum data transfer rate
Radio 1
up to 574 Mbps

Radio 2
up to 1200 Mbps

Radio 3
frequency scan only

Bluetooth with low power consumption
Bluetooth scanning and iBeacon advertising at a maximum transmission power of 10 dBm

Interfaces
7 10/100/1000 Base-T RJ45 ports (1x 802.3 at PoE (PD), 1x 802.3 af PoE (PSE), 2x Non-PoE ports, 1x End-to-end input, 1x end-to-end output, 1x RS-234

Power supply via Ethernet (PoE)
1 x 802.3 at PoE by default

Operating modes
power supply 802.af PoE – radio communication; powered by 802.3 at – all radios+PSE (7W); Powered by DC adapter – all radios + USB + PSE (802.3 af)

Simultaneous SSIDs
Up to 16 (14 if background scanning is enabled)

EAP Type(s)
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST

User/Device authentication
WPA™, WPA2™ and WPA3™ with 802.1 x or previous key, WEP, Web Captive Portal, MAC blacklist and Permissions list

Maximum Tx power (produced)
of 1 2.4GHz Radio
23 dBm/200 MW (2 circuits together)

Radio 2
5 GHz 22 dBm/158 MW (2 circuits together)

Radio 3
no data available

Kensington Castle
yes

IEEE standards
802.11 a, 802.11 b, 802.11 e, 802.11 g, 802.11 h, 802.11 i, 802.11 j, 802.11 k, 802.11 n, 802.11 r, 8-2. Fi 6), 802.1 Q, 802.1 X, 802.3 ad, 802.3 af, 802.3 at, 802.3 az, 802.3 bz

Supported SSID types
Local bridge, tunnel and grid

Radio client capacity
Up to 512 radio clients (Radio1 and Radio2)

The coexistence of cellular communications
yes

The LED is off
yes

OFDMA
yes

Spatial Reuse (BSS coloring)
yes

UL Mode
MU-MIMO 802.11 yes

DL-MU-MIMO
yes

Improved Target Wake-up time (TWT)
Yes
