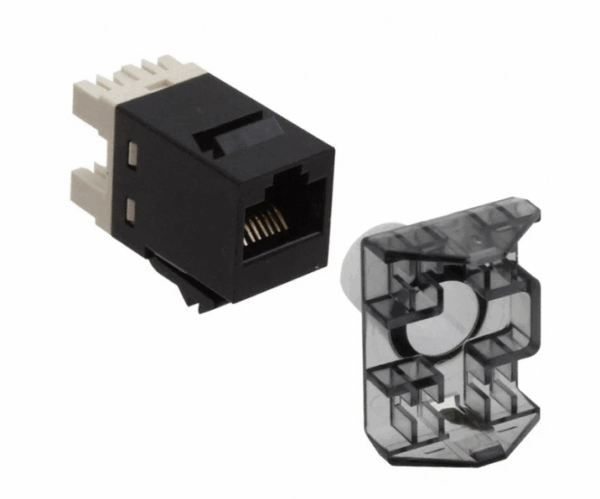

Modular jack AMP RJ45 UTP Cat.6 SL (bag of 24pcs.)

Description

ANSI/TIA Category
6

Cable Type
Unshielded

Colour
Black

Type of conductor
Solid | Stuck

Built-in type of dust cover
Nobody

Mounting
SL series faceplates and panels

Installation Note
The color is combined with black SL-style faceplates and surface mount boxes.

Socket function
Jack’s upside-down face

Outlet Type
Standard

Termination
Blows, at least 200 times

Completion Tool
SL Completion Tool

Completion type
IDC

Transmission standards
ANSI/TIA-568.2-D | ISO/IEC 11801, Class E

Electrical wiring
T568A | T568B

Cutout in the panel, recommended
14.78 x 20.07 mm (0.58 x 0.79 inches)

Recommended panel thickness
1.6mm | 0.063 inches

Height
16.13 mm | 0.635 inches

Width
14.48 mm | 0.57 inches

Depth
30.48 mm | 1.2 inches

Compatible cable diameter, max
5.8mm | 0.228 inch

Compatible insulated conductor diameter, max
1.45mm | 0.057inch

Thickness of the contact coating
1.27 microns

Compatible conductor gauge, solid
24–22 AWG

Compatible conductor gauge, stranded
26–24 AWG

Change in contact resistance, maximum
20 MOM

Contact resistance, maximum
100 mOhm

Rated current at temperature
1.5 A at 20 °C | 1.5 A at 68 °F

Dielectric resistance, RMS value, conductive surface
1500 V AC at 60 Hz

Dielectric resistance, RMS value, between contacts
1000 V AC at 60 Hz

Insulation resistance, minimum
500 MOM

The remote power supply Fully supports the safe supply of power over a LAN cable, described in the IEEE 802.3bt standard (Type 4), and meets the requirements for disconnection under electrical load prescribed by IEC.
60512-99-002

PoE
Durability

Supports
IEEE 802.3bt Type 4 applications (90 W) after 3000 cycles of plug-to-socket connection

Rated safe voltage
150 V AC

Contact base material
Beryllium copper

Contact coating material
Gold

Type of material
Polycarbonate

Contact coating
Pot

Holding force of the plug, minimum
50 N | 11,240 lbs of force

Plug and socket coupling cycles
Complies with IEC 60603-7 series.
