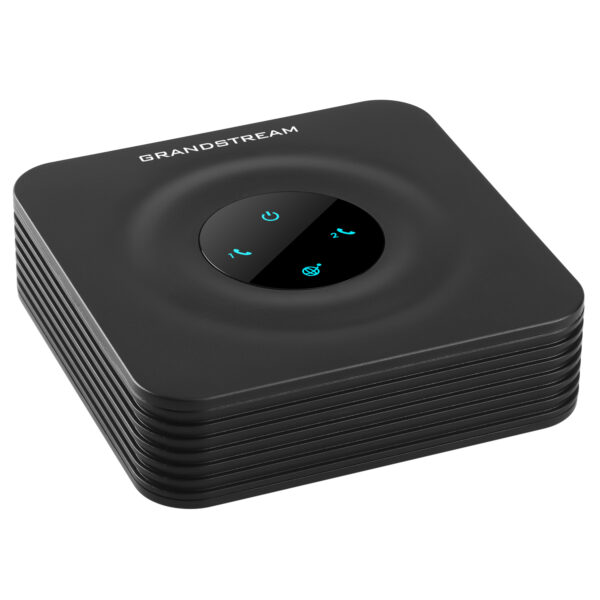

HandyTone 802, 2 FXS port, 1LAN

Description

Telephony interfaces
Two (2) FXS ports

Network interfaces
One (1) 10/100Mbps Ethernet port with auto-detection (RJ45)

LED indicators
POWER (power supply), INTERNET (Internet connection), PHONE1 (phone1), PHONE2 (phone2)

Factory Reset button
Yes

Telephony functions
Number detection and blocking number detection, waiting for a call, transferring a call using the Flash button, blind call transfer, accompanied call transfer, forwarding, hold, blocking incoming calls, 3-way conferencing

G.711 voice codecs with Supplement I (PLC) and Supplement II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic delay oscillation buffer, advanced line echo cancellation

Fax by IP
Fax relay of the third group of the standard T.38 with support
for data transfer rates up to 14.4 kbit/s and auto-switching in G 711 for fax transmission

Call range for short-range/long-range communication
2 REN: up to 1km by 24 AWG

Caller ID
(Caller ID) Bellcore types 1 and 2, ETSI, BT, NTT, and DTMF-based CID

Separation methods
Busy signal, Reverse polarity/control pulse, Current in the circuit

Network protocols
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH,
STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP*, TR-069

QoS
Layer 2 (802.1Q VLAN, SIP/RTP 802.1p), Layer 3 (ToS, DiffServ, MPLS)

DTMF method
In-audio, RFC2833 and/or SIP INFO

Setup and management
HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated configuration
using AES encryption, system log

Wednesday
SRTP*

Control
TLS/SIPS/HTTPS

Management
System log support, SSH, remote management via browser

Universal power supply
Input: 100-240V AC, 50-60Hz
Output: 5.0V post.current/1.0A

Environment
Working: 32º – 104ºF or 0º – 40ºC
Keeping: 14º – 140ºF or -10º – 60ºC
Humidity: 10 – 90% non-condensing
Dimensions and weight 100mm x 100mm x 29.5mm, 114g (without packaging)
