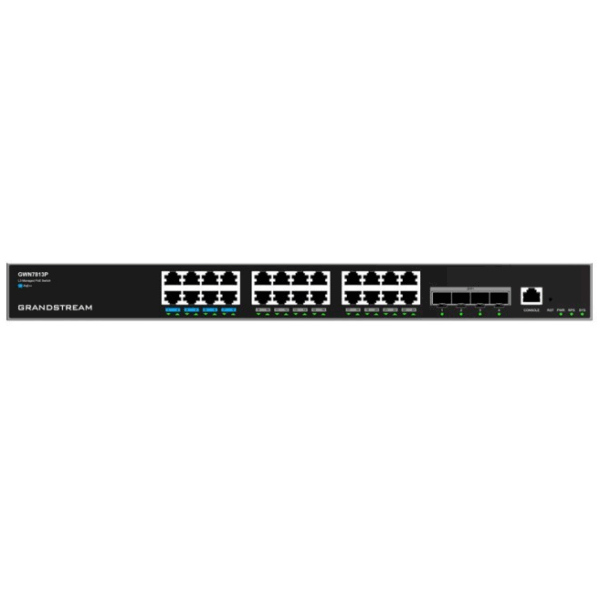

Grandstream GWN7813P, Enterprise Layer 3 Managed Network Switch, 24-ports Gigabit Ethernet, PoE/PoE+ (360W), 4-SFP,Desktop, wall-mount, or rack-mount

Description

Switch Type
A managed, swarming switchboard

Switch level
L3

Number of RJ45 connectors
24

Number of SFP ports
4

Number of PoE ports
24

Network interfaces
24x Gigabit Ethernet
4×10 Gigabit SFP+
24x PoE
1x Console

Compliance with network standards
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x

The switching matrix
128 Gbps

MAC Address table
16K

Packet Memory Buffer
12 MB

Device management
CPU and Memory Monitoring, SNMP, RMON, LLDP and LLDP-MED, Backup and Recovery, System Log, Diagnostics including Ping, Traceroute, Port Mirroring, UDLD (TBD) and Copper Test

Additionally
Availability of SFP+ ports, PoE support, Rack mount

PoE Parameters
IEEE 802.3af/at/bt
60W (1-8, PoE++) 30W (9-24), 360W

Certification
FCC, CE, RCM, IC, UKCA

Indicators
1 Three-color indicator for device monitoring and status indication
2 two-color indicators for primary and backup power supplies (PWR and RPS)
28 green data transmission indicators
24 yellow PoE power indicators

Cooling
of 3 fans

Environmental parameters
Operation: from 0 to 45 °C, relative humidity from 10 to 90% (non-condensing)
Storage: -10 to 60 °C, relative humidity: 5 to 95% (non-condensing)

Power supply
External backup power supply 54 V

Power consumption
300 W

Equipment
1 switchboard
1 AC cable (10 A), 1.2 m
1 grounding cable, 25 cm
4 rubber pads
1 Power cable cover with twist protection
8 screws (KM 3*6)
1 Installation guide
1 console cable (optional)

Colour
Black

Dimensions
440 x 200 x 44 mm

Weight
4.69 kg

Other
Switching:
16 thousand static or dynamic MAC address records with filtering
4 thousand VLANs, Port-based VLANs, IEEE 802.1Q VLAN tags, Voice VLAN
Virtual VLAN Interface
GVRP (under development)
Spanning tree, 32 instances for STP/RSTP/MSTP
