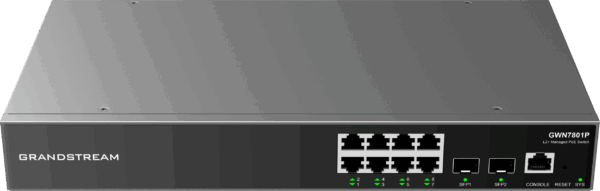

Grandstream GWN7801P, Enterprise Layer 2+ Managed Network Switch, 8-ports Gigabit Ethernet, PoE/PoE+ (120W), 2-SFP, Desktop, wall-mount

Description

The GWN7800 series are managed Layer 2+ network switches that enable small and medium–sized enterprises to create scalable, secure, high-performance and intelligent business networks that are fully managed. It supports extended VLANs for flexible and complex traffic segmentation, enhanced network traffic priority QoS capabilities, IGMP tracking to optimize network performance, and comprehensive protection features against potential attacks. PoE models provide intelligent dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. There are several ways to manage the GWN7800 series, including using a LAN controller built into the web user of the gwn7800 series switch. The series is also supported by GWN.Cloud and gwn Manager, Grandstream cloud platform and local Wi-Fi management platform. The enterprise–grade GWN7800 series are ideal managed network switches for small and medium-sized businesses.

Characteristics of GWN7801P:

Network Protocol
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1p, IEEE 802.1p, IEEE 802.1p 802.1s

Gigabit Ethernet Ports – 8
Gigabit SFP Ports – 2
# of PoE Ports – 8
Integrated Power Supply 150W
Max Output Power per PoE Port 30W
Max Total PoE Output Power 120W
PoE Standards IEEE 802.3af/at
Total non-blocking throughput 10Gbps
Switching Capability 20Gbps
Forwarding Rate 14.88M packets per second
Packet Buffer 4.1MB

Switching
• 8K static, dynamic and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 8 link aggregation groups
• Spanning tree, 64 instances for STP/RTSP/MSTP
Multicast IGMP Snooping, MLD Snooping, MVR

QoS/ACL
• Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 1.5K ACL for Ethernet, IPv4 and IPv6

DHCP
DHCP server, DHCP relay, Option 82, 60,160 and 43
Maintenance CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port
mirroring, UDLD(TBD) and copper test

Security
• User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock)

Mounting
Desktop/ Wall-Mount
