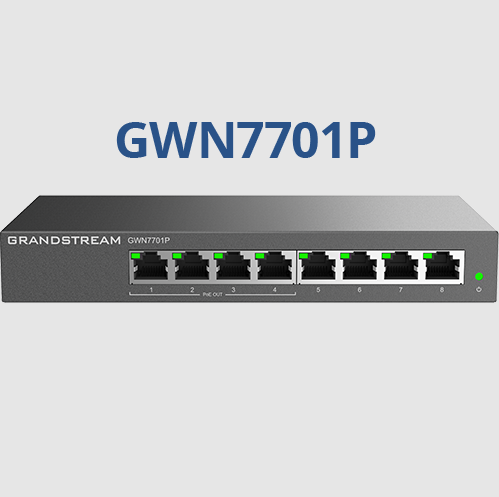

Grandstream GWN7701P, Unmanaged Network Switches, 8-ports Gigabit Ethernet, PoE 4-Ports, Desktop, wall-mount

Description

Switch Type
Unmanageable

Number of RJ45 connectors
8

Number of PoE ports
4

Network interfaces
8 RJ45 10/100/1000Mbps ports

Autonegotiation
MDI/MDIX Auto-detection

Compliance with network standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

The switching matrix
16 Gbps:

MAC Address table
8000

Jumbo frame
9 KB

Additionally
PoE support

PoE Parameters
1-4 802.3 af/at ports
Up to 30 watts on each port, power budget: 60 watts;
Turning off the port with the lowest priority in case of overload.
Priority: from port 4 to port 1

Certification
FCC, CE, RCM, IC, UKCA

Indicators
Power, Link, PoE

Passive cooling

Environmental parameters
Operating temperature: 0 to 40 °C
Storage temperature: -40 to 60 °C
Operating humidity: 10 to 90% (non-condensing)
Storage humidity: 5 to 90%, non-condensing

Power supply
48-53.5VDC 1.22A

Power consumption
3 Watts (without PoE)

Equipment
1 switchboard
1 Power adapter
1 Quick Start Guide

Colour
Black

Sizes
190 x 100 x 28 mm

Weight
440 g
