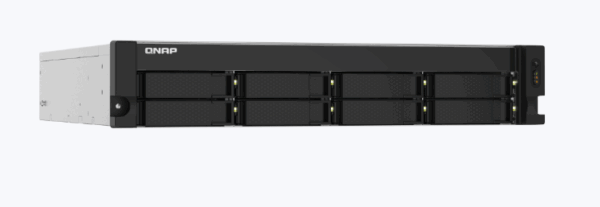

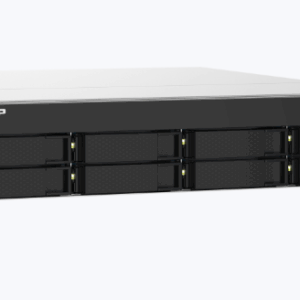

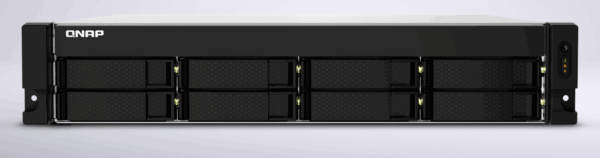

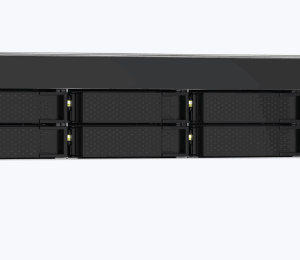

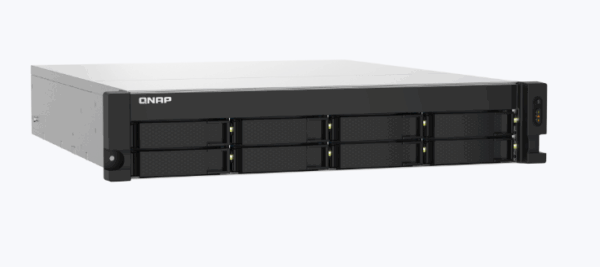

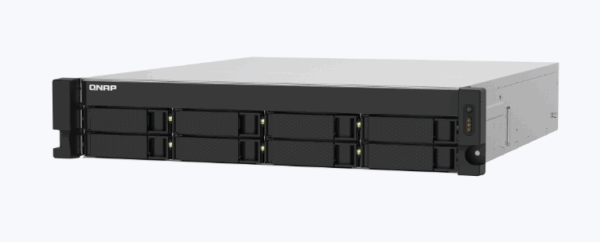

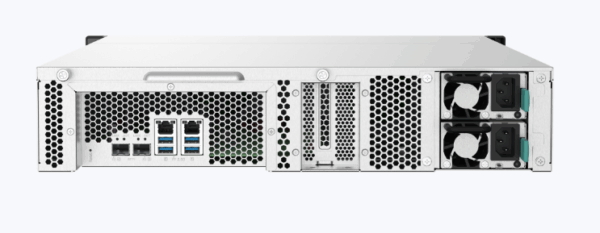

8-Bay AL324 quad-core 1.7 GHz rackmount NAS with 250W redundant PSU, 4GB DDR4 UDIMM RAM (max 16GB), SATA 6Gb/s, 2x 10GbE SFP+, 2x 2.5GbE, 1x PCIe Gen2

Description

Processor
AnnapurnaLabs Alpine AL324 64-bit 4-core ARM® Cortex-A57 processor with a clock speed of 1.7 GHz

CPU Architecture
64-bit ARM

System memory
4 GB UDIMM DDR4 (1 x 4 GB)

Maximum memory
16 GB (1 x 16 GB)

Memory slot
1 x UDIMM DDR4

Flash memory
512 MB (dual-boot OS protection)

Drive Bay
8 SATA 3.5-inch ports, 6 Gbit/s, 3 Gbit/s

Drive compatibility
3.5-inch bays:
3.5-inch SATA hard drives
2.5-inch SATA hard drives
2.5-inch SATA solid-state drives

2.5Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10m)

10-Gigabit Ethernet port
2 10GbE SFP+ ports

Jumbo
Frame

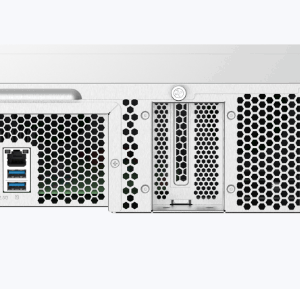

PCIe Slot
1

Slot 1
PCIe Generation 2 x2

PCIe bandwidth limitations limit the performance of a 10GbE NAS.

Card sizes for PCIe slot
220 x 68.9 x 18.76 mm / 8.67 x 2.71 x 0.74 inches.

1st Generation USB 3.2 port
4

The shape factor
2U for rack mounting

LED indicators
Hard disk 1-8, status, local network, storage expansion

Buttons
Power Supply, Reset

Dimensions (HxWxD)
88.6×432×511 mm

Weight (net)
12.47 kg

Weight (gross)
14.61 kg

Operating Temperature
0–40 °C (32–104 °F)

Storage temperature
-20–70°C (-4–158°F)

Relative humidity
Relative humidity 5-95%, non-condensing, according to a wet thermometer: 27°C (80.6°F)
