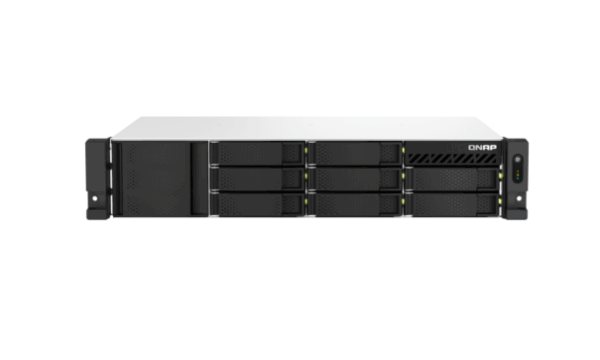

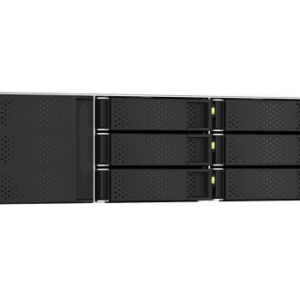

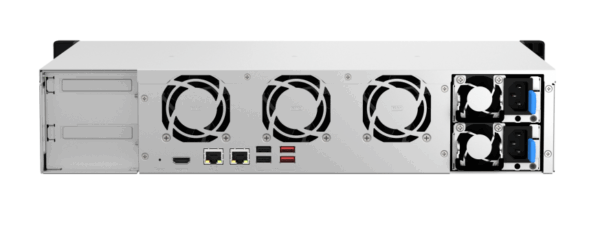

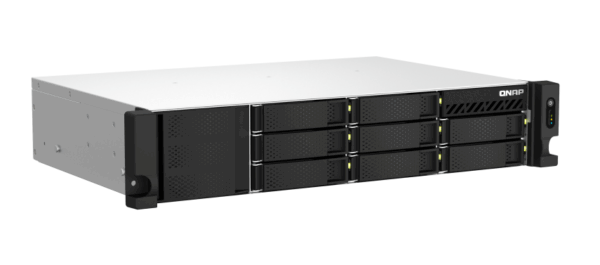

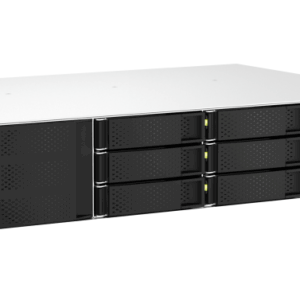

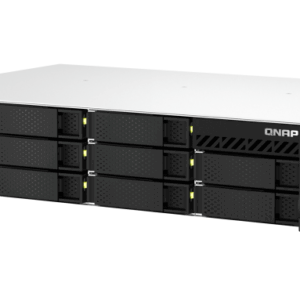

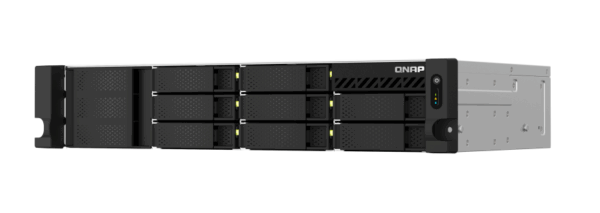

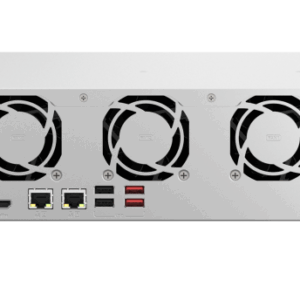

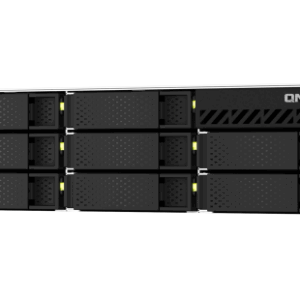

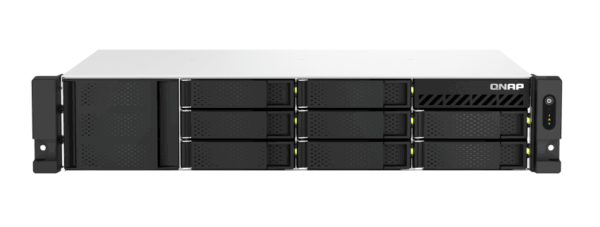

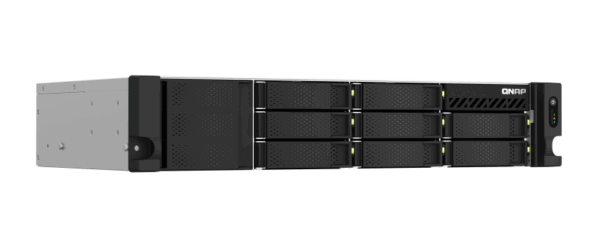

8-bay 2U short depth 12" rackmount NAS, Intel Celeron N5095 quad-core, 8 GB onboard not expandable, 8 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x 2.5GbE

Description

Processor
Quad-core Intel Celeron N5095 2.0GHz

Memory
TS-864eU-RP-4G: 4 GB (DDR4)
* Can be expanded to 16 GB
** There are 2 slots in total.
*** 1 pc slots are occupied.
TS-864eU-RP-8G: 8 GB (DDR4)

Number of slots
8

Type 1 Hard drive slots
8

Hot swapping of disks
Yes

Support 3.5" hard drives
Yes

Support 2.5" Hard drives
Yes

Interface
SATA 6 Gbps

Hard drive support
up to 22 TB

The extension interface
USB

Maximum storage capacity
176 TB

The maximum capacity of the solution, taking into account the expansion modules
704 TB

STATUS Indicator
Yes

Hard Drive Indicators
Yes

LAN Indicator
Yes

Power Button
Yes

Reset Button
Yes

System Speaker
Yes

Flash memory
TS-864eU-RP-4G: 4 GB

The form factor
Rack-mounted

Height in the rack
2U

Dimensions, mm
88.6 × 482.14 × 346.43

Weight (net), kg
7,9

Weight (gross), kg
10,47

Operating temperature range
0 — 40˚C

Relative humidity
5 — 95% at 27C

Power unit
Built-in

Input voltage
100 — 240 V

Power
300 Watts

Backup power supply
Included

Type of cooling
Active

Housing fans
3

Case fan size
60 mm, 12V
