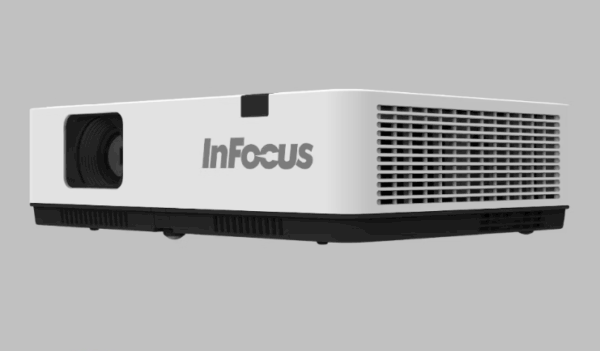

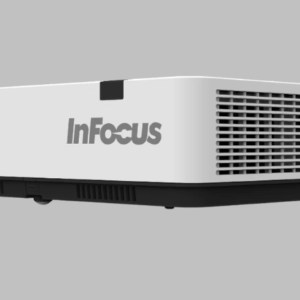

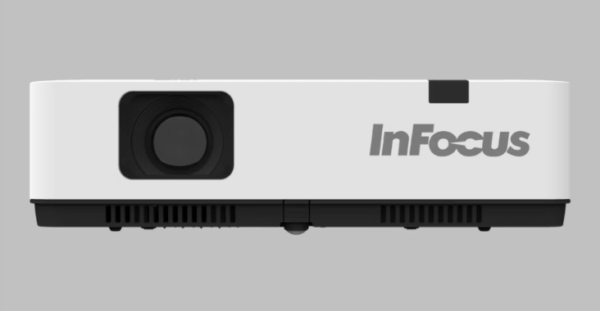

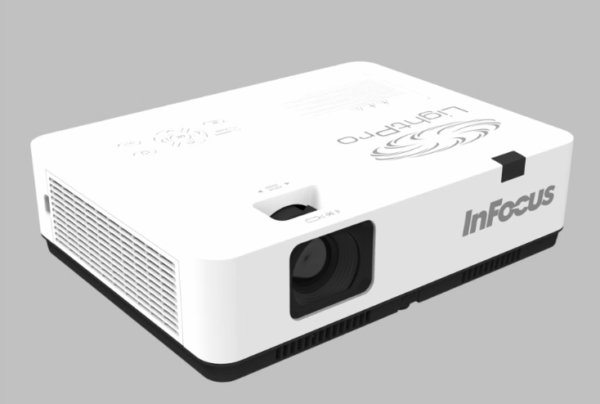

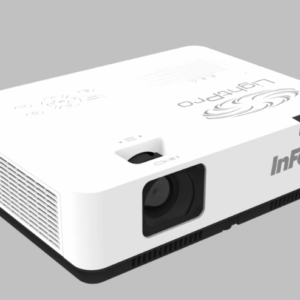

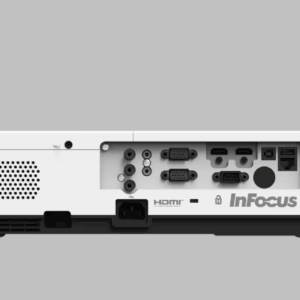

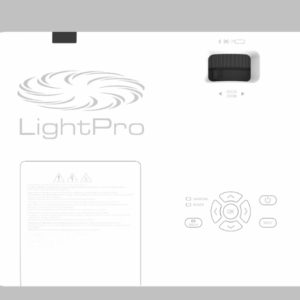

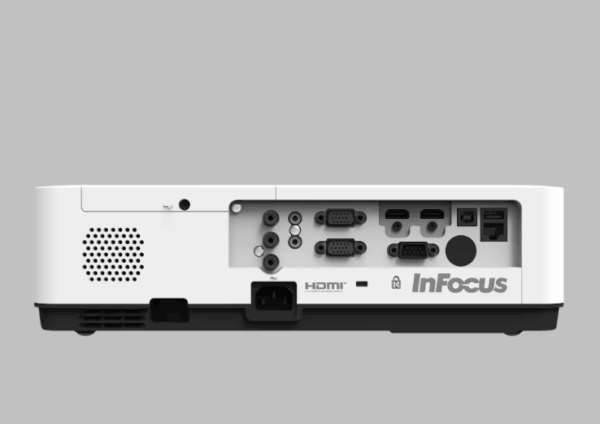

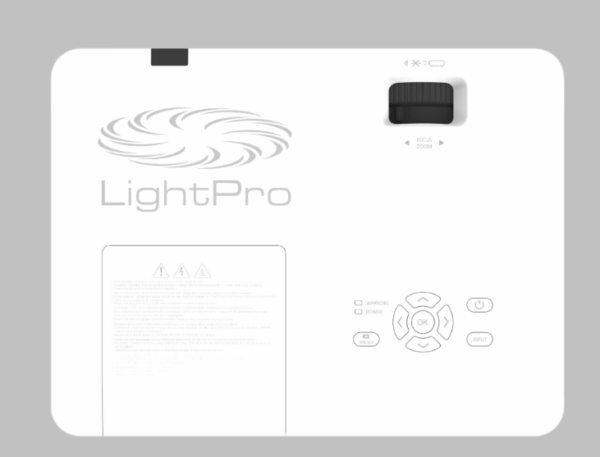

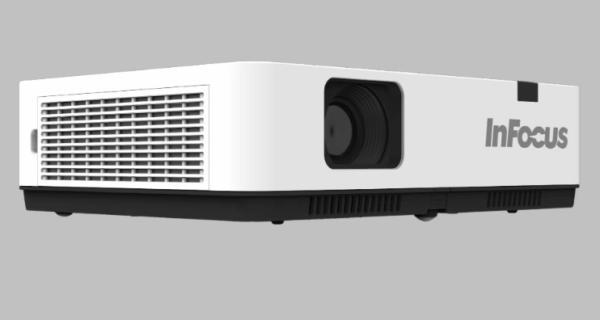

InFocus MULTIMEDIA PROJECTOR,MODEL P163, WUXGA,IN1029

Description

Projection technologies
3LCD with microlens matrix

Panel Size
3 x SonyTM 0.64 inches

Native resolution
WUXGA

Pixels
1920 x 1200

Aspect ratio
16:10

Contrast ratio
50000:1

Brightness (Lumens) Color light output/White light output
4200

Light source
Ultra-high pressure lamp

The service life of the light source is a maximum of hours
20000

Maximum supported resolution
3840 x 2160 (4K) at 30 Hz

Horizontal synchronization. Range (kHz)
15 ~100

Vertical synchronization. Range (Hz)
48 ~85

Uniformity (%)
85

1.2x lens

Adjusting the zoom of the lens
Guide

Image offset (%)
10

Focal length f (millimeters)
19.16 ~ 23.02

F-stop
1,6 ~ 1,76

Adjustment of trapezoidal distortion
Automatic/Manual

Vertical correction of trapezoidal distortions
±30°

Horizontal correction of trapezoidal distortions
±30°

Projection coefficient
1,37 ~ 1,65:1

Projection distance (meters/feet)
0.87~ 10.74 / 2.85~35.23

Optical zoom
Guide

Digital Zoom Reduction/Increase
0,0x ~ 4,0x

Focus Adjustment
Guide

Power supply
100~240 VAC; 50~60 Hz

Max. power consumption (W)
340

Minimum power consumption (W)
150

Network power consumption in standby mode (W)
<2

Standby power consumption (W)
<0.5

Dimensions (W x H x D) (mm/inch)
345 x 261 x 99 / 13.58 x 10.27 x 3.89

Product Weight (Kilograms/pounds)
3.3 / 7.27

Fan Noise (dB)
26~ 32

Audio
1 x 16W

Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104

Working humidity (%)
20~80

Maximum working height (meters/feet)
3000/9842

Storage Temperature (Celsius/Fahrenheit)
-10 ~ 50 / 14 ~ 122

Storage humidity (%)
20 ~ 80

Safety
Kensington Lock™ Port, Security Panel, Keyboard lock, PIN and Timer functions

In the box
Projector, IR remote control (without batteries), power cord, VGA cable, installation guide.

Safety and regulation
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS

Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
