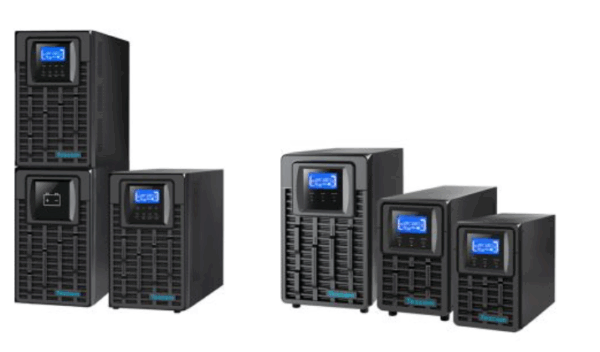

Tescom TEOS 110 series 10kVA On-line UPS

აღწერა

Online type (transfer time 0 seconds)

Power (VA)
3000

Power (W)
3000

Form
Stand and Tower

Phase
One stage

The power factor
1.0

The waveform
Pure sine wave

LCD Control Panel

Communication port
RS232, USB type B

Battery Type
12 At 9 Ah

Number of batteries
6

Internal battery
Yes

Typical recharge time
4 hours to 90%

Network management
SNMP card (not included)

UPSMON Application Management

Dimensions (power module) (WxDxH) (mm)
428 x 635 x 84

Weight (power module) (kg)
26.2

Dimensions (Battery module) (WxDxH) (mm)
428 x 635 x 84

Weight (battery module) (kg)
37.3

Voltage
208/220/230/240 V AC

Input frequency range
50/60 Hz ± 0.25 Hz (automatic detection)

Broadcast
0 seconds

Harmonic distortion
KNI 2.5% at linear load

The Cross Factor
3:1

The EPO function
Option

Overload (linear mode)
105-120% 30 seconds, 121-150% 10 seconds

Overload (battery mode)
101%-109% 10 seconds, 110%-120% 3 seconds

Overload protection
IEC 61000-4-5 Level 3

Bypass
Internal bypass (automatic and manual)

Short circuit protection
The UPS output is turned off immediately

SNMP slot
Option

Working humidity
0~90% relative humidity at 0~40°C (non-condensing)

Sound noise
Less than 40 dB

Height
< 2000 m

Heat dissipation (BTU/h)
1024
