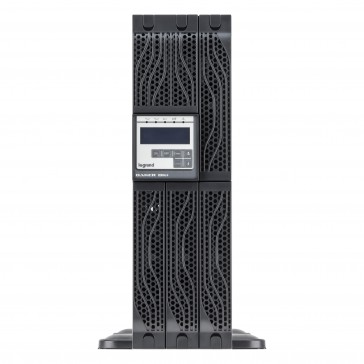

Daker DK Plus convertible UPS without battery – Single phase VFI – 10000 VA – 10000 W

აღწერა

Input voltage
176-280 V

Primary frequency
47.5–63 Hz

The number of phases of the primary winding
1

Output voltage
228-232 V

Secondary frequency
50-60 Hz

Effective power output
10000 Watts

Full power output
10000 VA

The number of phases of the secondary winding
1

SNMP
Yes

Type
of AC voltage

Height
440 mm

Width
132 mm

Depth
680 mm

Weight
26 kg

Suitable for network management
Yes

USB technology
Online

Type of construction
Device with a diameter of 482.6 mm (19 inches)

Max. output voltage distortion (linear load)
3 %

Output power factor
1

Overall efficiency
94 %

Efficiency in eco-mode
98 %

Input connection
Fixed connection

Number of output connections fixed connection
1

Degree of protection (IP)
IP21

Operating/setting temperature
0-40 °C

Storage temperature
0-50 °C

Power supply
current 56-56 A

Sound level
50 dB

Terminal marking indication
Yes

Type of load
Universal

With an outlet
Yes
