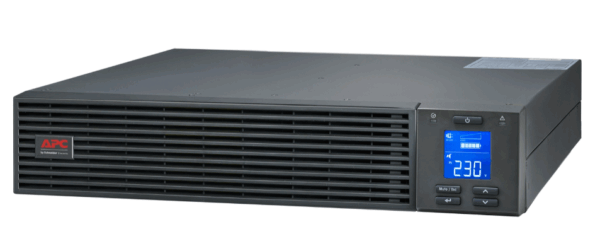

APC Easy UPS SRV RM 2000VA 230V ,with RailKit

აღწერა

Max. capacity used
100 %

Main Input voltage
230 B

Product Type
Uninterruptible power supply (UPS)

Other Input voltage
220 B
240 B

Main Output voltage
230 V

Other Output voltage
220 V
240 V

Rated power [W]
1600 W

Rated power
2000 VA

Input Connection Type
IEC 60320 C14

output connection type
4 IEC 60320 C13

Number of Units
2U

Length
1,50 m

Number of cables
1

Battery Type
Lead-acid battery

Battery voltage
48 V

Pre-installed batteries
0

Free battery compartments
0

Typical recharge time
4 h

battery life
3…5 year(s)

Spare battery
APCRBCV201

Charger power (W)
70 W rated

The maximum value of the autonomy time
4 min

The number of slots occupied by power modules is
0

The number of unoccupied power modules
is 0

reserve
No

Colour
Black (RAL 7010)

Height
8,6 cm

Width
43.7 cm

Depth
46,2 cm

Net weight
18,2 kg

Installation location
Front

Type of fastener
Lower

Installation execution
Rack

USB-compatible
Yes

Mounting position
Horizontal

Input voltage limits
110…285 V half load
160…280 V full load

Network frequency
40-70 Hz auto detection

Maximum specified power (VA)
2000 VA

Maximum set power (W)
1600 W

Output frequency
50/60 Hz +/- 3 Hz synchronized with the power grid

Harmonic distortion
3 %

Type of UPS
Topology double transformation

Type of voltage form
Sinusoidal signal

EFFICIENCY
88 % (full load)

Additional information
Selection of output voltage 220, 230 or 240 V

bypass type
Internal bypass (automatic and manual)

Cross factor
3:1
