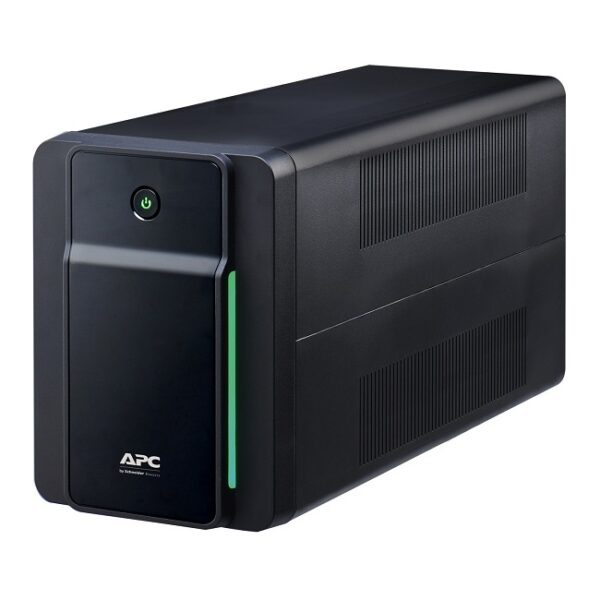

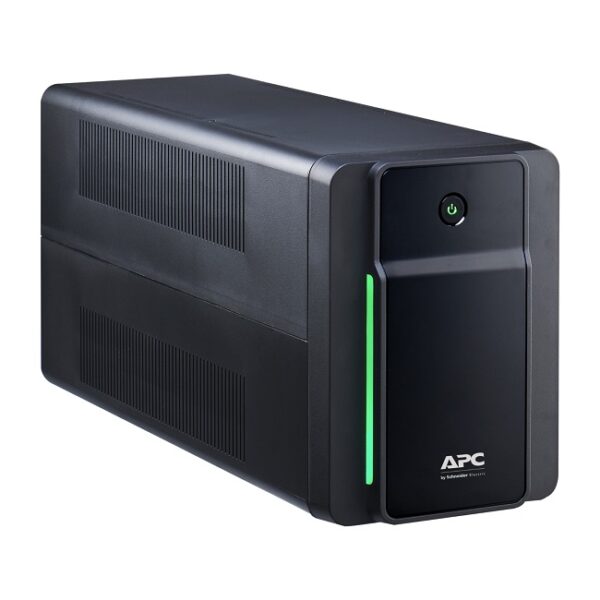

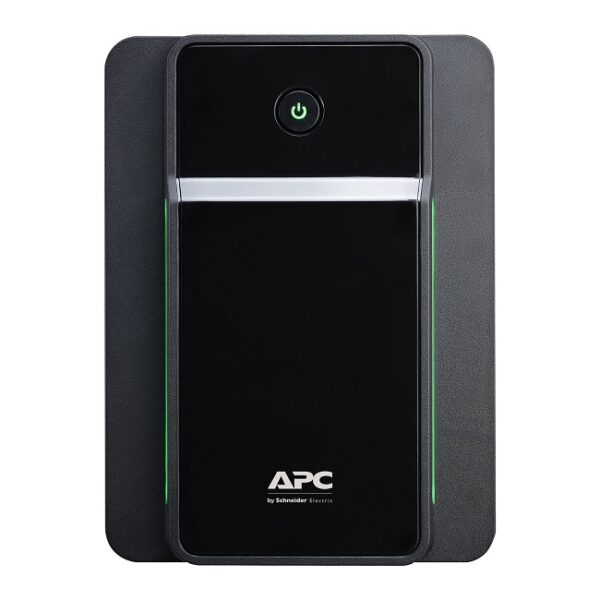

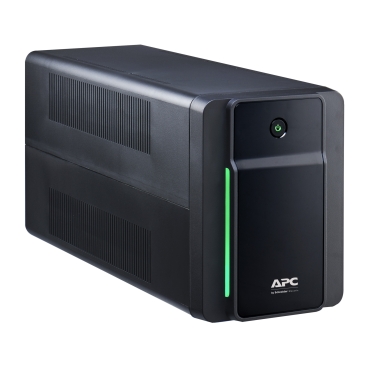

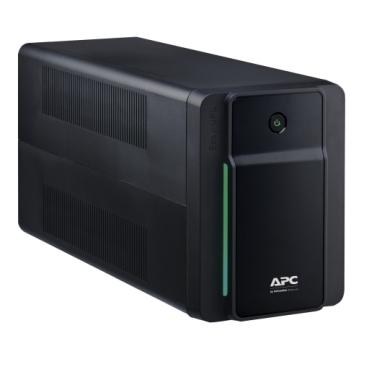

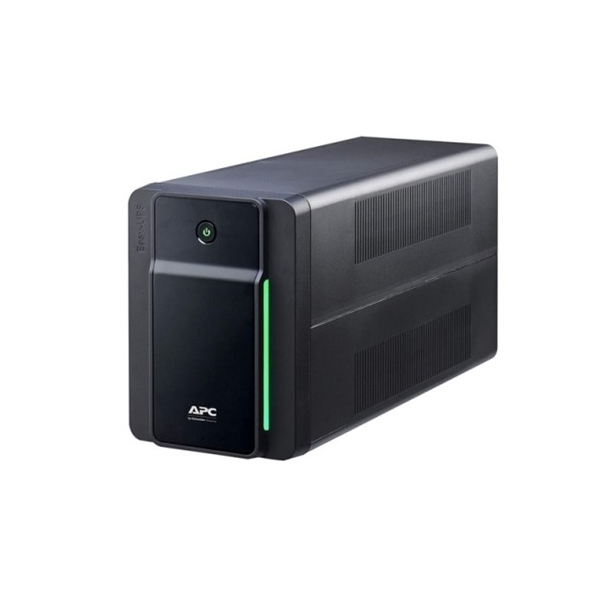

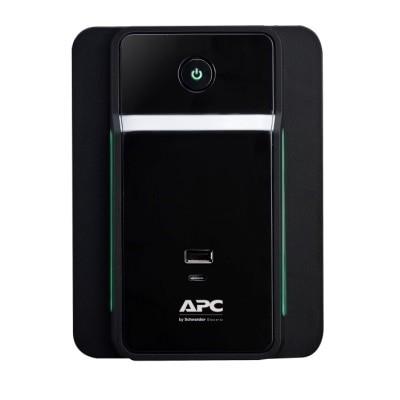

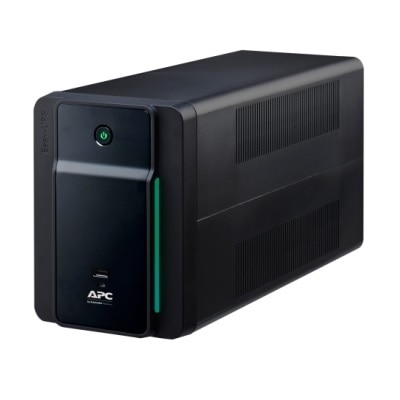

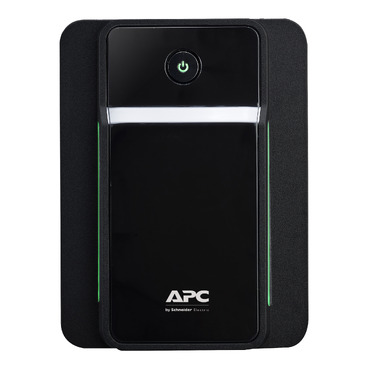

APC Back-UPS 1600VA, 230V, AVR, Schuko Sockets

აღწერა

Read full description below:

Full name:

APC Back-UPS 1600VA, 230V, AVR, Schuko Sockets

Full description:

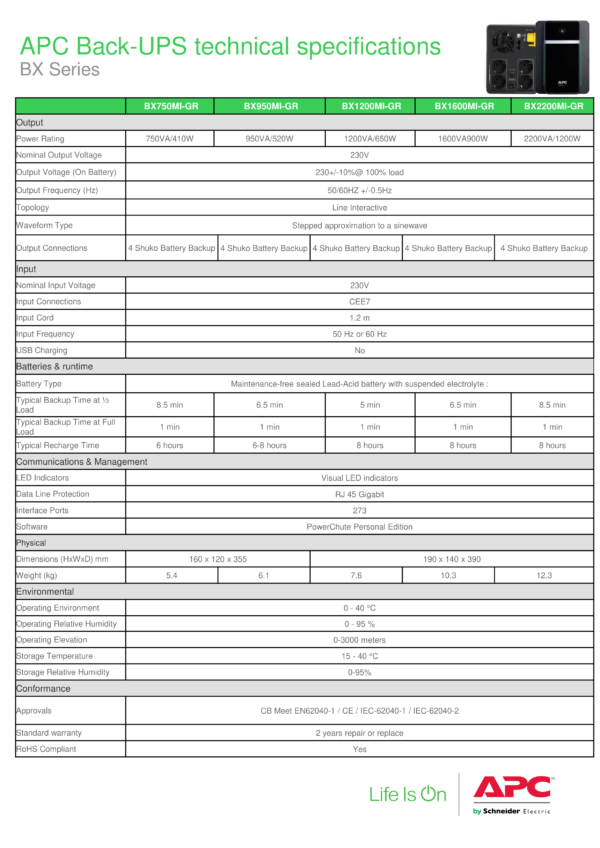

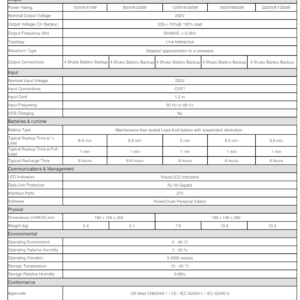

Main features
– Working time with a load of 900 W: 1m 6s
– Output power: 900 Watts / 1.6 kVA
– Rated output voltage: 230V
– Rated input voltage: 230V

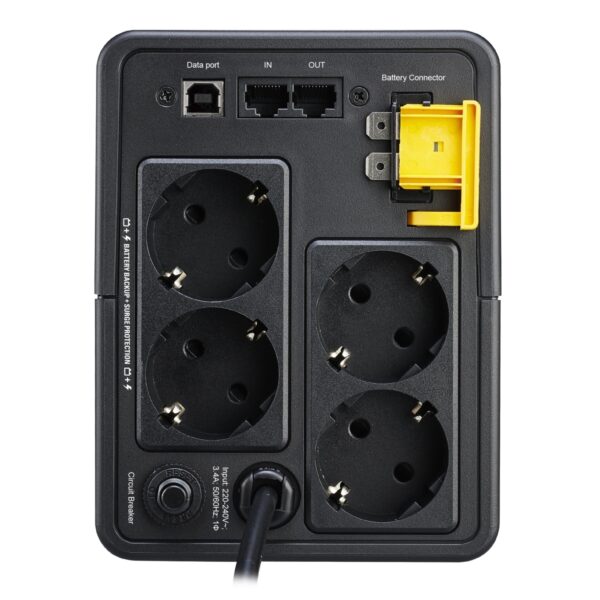

– Input connection type: Schuko
– Length of the cord: 1.2 meters

Exit
– Maximum specified power (W): 900 Watts / 1.6 kVA
– Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Synchronized with the power grid
– Topology: Linear-interactive
– Type of voltage form: Step approximation of a sinusoid
– Switching time: 6 ms typical: 10 ms maximum

Entrance
– Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
– Input voltage range when operating from the mains: 140-300V
– Number of power cables: 1
– Input power factor under full load: 0.56

Batteries and battery life
– Battery Type: Lead-acid battery
– Typical recharge time: 8 hours
– Rated battery voltage: 24 V
– Expected battery life (years): 3-5
– Battery capacity in volt-ampere-hours: 168

Communication and administrative tools
– Interface Port (s): USB
– Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
– Sound signal: A signal to switch to battery operation mode : a special signal of battery exhaustion

Surge protection and noise filtering
– Burst energy rating: 273joules
– Data Line Protection: 10/100/1000 Base-T RJ45 Ethernet Protection

Physical parameters
– Maximum height: 190MM, 19.0 cm
– Maximum width: 140MM, 14.0 cm
– Maximum depth: 390MM, 39.0 cm
– Net weight: 10.3 KG
– Gross weight: 11.3 KG
– Dimensions of the TRANSPORT package: 297x235x495MM
– Color: Black

Environmental Parameters
– Operating temperature: 0 – 40 °C
– Operating range of relative humidity: 0-95 (Non-condensing) %
– Operating range of altitude above sea level: 0-3000 meters
– Storage temperature: -15-40 °C
– Storage Relative humidity: 0-95 (Non-condensing) %
– Storage height above sea level: 0-3000meters
– The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
– Protection class: IP20

Accordance
– Compliance with the requirements: CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.
