Fortinet FortiGate-120G Network Firewall

აღწერა

• Network security firewall appliance
• Warranty: 1 year(s)

Read full description below:

Full name:

Fortinet FortiGate-120G Network Firewall

Full description:

System Performance — Enterprise Traffic Mix

IPS Throughput 5.3 Gbps

NGFW Throughput 3.1 Gbps

Threat Protection Throughput 2.8 Gbps

System Performance and Capacity

Firewall Throughput (1518 / 512 / 64 byte UDP packets) 39 / 39 / 28 Gbps

Firewall Latency (64 byte UDP packets) 3.17 μs

Firewall Throughput (Packets Per Second) 42 Mpps

Concurrent Sessions (TCP) 3 M

New Sessions/Second (TCP) 140 000

Firewall Policies 10 000

IPsec VPN Throughput (512 byte) 1 35 Gbps

Gateway-to-Gateway IPsec VPN Tunnels 2000

Client-to-Gateway IPsec VPN Tunnels 16 000

SSL-VPN Throughput 1.5 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 500

SSL Inspection Throughput (IPS, avg. HTTPS) 3 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) 2100

SSL Inspection Concurrent Session (IPS, avg. HTTPS) 315 000

Application Control Throughput (HTTP 64K) 6.7 Gbps

CAPWAP Throughput (HTTP 64K) 35 Gbps

Virtual Domains (Default / Maximum) 10 / 10

Maximum Number of FortiSwitches Supported 48

Maximum Number of FortiAPs (Total / Tunnel Mode) 128 / 64

Maximum Number of FortiTokens 5000

Additional info:

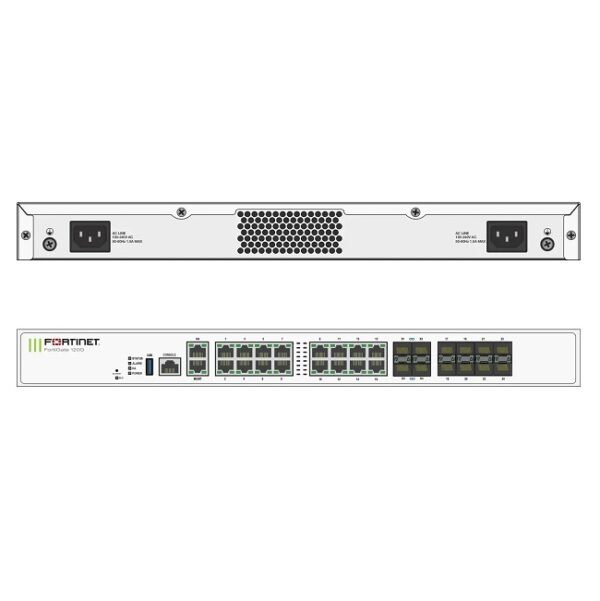

FortiGate-120G 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, SP5 hardware accelerated, dual AC power supplies
