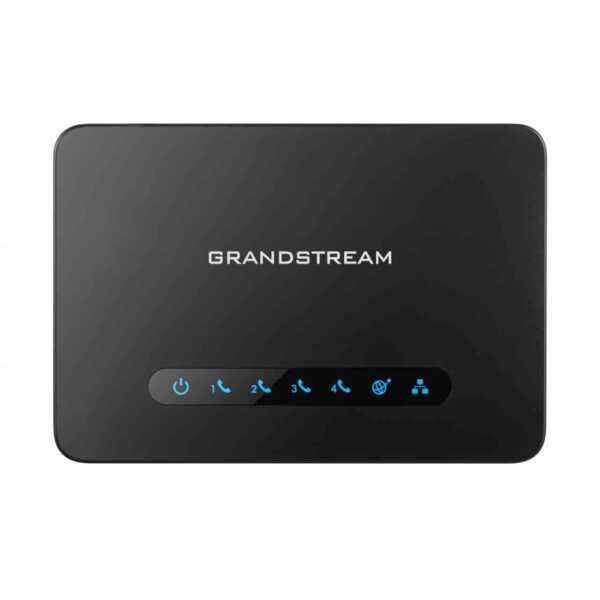

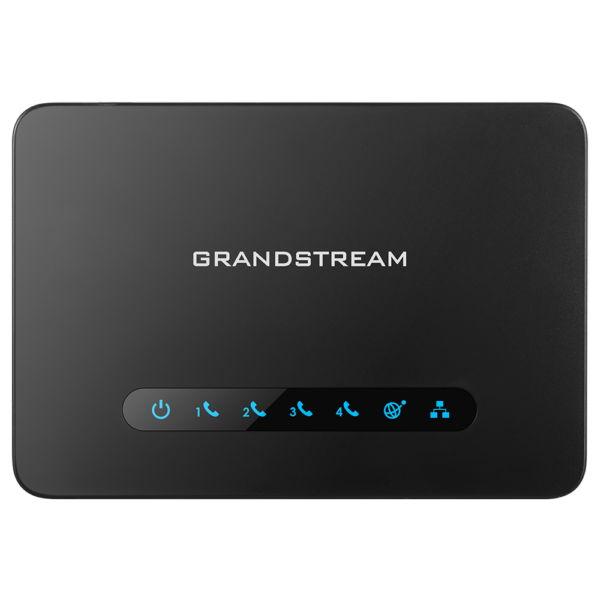

Grandstream HT814

აღწერა

Read full description below:

Full name:

Grandstream HT814

Full description:

Telephony interfaces
Four (4) RJ11 FXS ports

Network interfaces
Two (2) 10/100/1000Mbps RJ45 ports

LED indicators
POWER SUPPLY, LAN, WAN, TELEPHONE 1, TELEPHONE 2, TELEPHONE 3, TELEPHONE 4

Factory Reset button
Yes

Telephony functions
Caller ID display and lock, Call waiting, flash, blind or accompanied call transfer, Forwarding, Hold, Do not disturb mode, 3-way conference

G.711 speech codecs with Appendix I (PLC) and Appendix II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726, iLBC, OPUS, Dynamic reference frequency jitter buffer, advanced line echo compensation

Fax by IP
T.38 according to Group 3 fax transmission up to 14.4kpbs and auto-switching to G.711 for Fax Pass-through

Electrical load for short/long distances
2 REN, up to 1km on 24AWG line

Caller ID
Bellcore Type 1 and 2, ETSI, BT, NTT, and DTMF-based CID

Separation methods
Busy Signal, Reverse Polarity/Wink, Current Loop

Network protocols
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP,
TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP*, TR-069

QoS
Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)

DTMF method
In-audio, RFC2833 and/or SIP INFO

Setup and management
HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated configuration using AES encryption, system log

Wednesday
SRTP*

Control
TLS/SIPS/HTTPS

Management
System log support, SSH, remote management using the web browser

Universal power supply
Input: 100-240VAC, 50 Hz
Output: 12V/1.0A

Environmental characteristics
Working hours: 32º – 104ºF or 0º – 40ºC
Storage: 14º – 140ºF or -10º – 60ºC
Humidity: 10 – 90% Non-condensing

Dimensions and weight
28.5 x 130 x 90 mm (H x W x D)
Weight: 0.29 Kg

Additional info:

HandyTone 814, 4 FXS port, Gigabit NAT router, 1LAN, 1WAN
