WA6620X,Outdoor Mounting bracket,structure

აღწერა

The shape factor
SFP

MEDIA
Cat 5e/6/6a (UTP)

Connector
RJ-45

LOS reception
Without a name

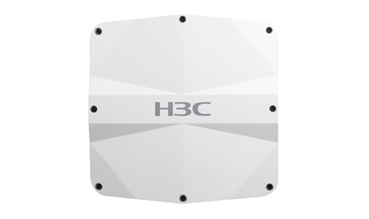

WA6620X

Weight
1.8 kg

Dimensions (W × D × H)
250 mm x 250 mm x 79.5 mm

Interface
1 x 10/100/1000M Ethernet, RJ-45, PoE input
1 x 10/100/1000M Ethernet, RJ-45, PoE output
1 1000M optical port, SFP

Console port
1 × Control Console port (RJ-45)

PoE input
1 x 10/100/1000M Ethernet, 802.3at/af

PoE output
1×10/100/1000M Ethernet, 802.3af

Local power supply
PoE Adapter Power Supply (optional)

Antenna Type
Built-in directional antenna
Support for extended external antenna

Antenna gain
Peak gain of 5 GHz: 11 dBi
2.4GHz Peak gain: 11 dBi

Note. Horizontal Beam width (HBW): 65 degrees, Vertical beam width (VBW): 30 degrees.

Built-in IoT module
BLE5.1

External IoT module
RFID/Zigby

Frequency bands
2,400–2,4835 GGzIZM
5,150–5,250 GGTSU-NII-1
5,250–5,350 GGTSU-NII-2A
5,470–5,725 GGTSU-NII-2S
5,725–5,850 GGTSU-NII-3/ISM

Note. The available ranges and channels depend on the regulatory setting (country).

Modulation technology
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps

Modulation mode
11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM: 64QAM @ 48/54 Mbps, 16QAM @ 24 Mbps, QPSK @ 12/18 Mbps, BPSK @ 6/9 Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Maximum transmission power
5 GHz: 27 dBm
2.4GHz: 30 dBm

Note. The transmission power is the combined power of several circuits, the antenna gain is not taken into account. The actual transmission power depends on local laws and regulations.

Adjustable degree of power detail
1 dBm

Mounting
Mounting on a pole/Wall mounting

led
Alternating flashing mode: orange/green/blue for different operating conditions.

Temperature
Operating temperature: -30°C to +55°C.
Storage temperature: -40°C to +70°C.

Humidity
Operating humidity: 0% to 100% (non-condensing)
Storage humidity: 0% to 100% (non-condensing)

Protection class
IP68

Note. Even when used with an external antenna

Power consumption
≤1.2 W

DDM/HOUSE
Not supported

Commercial temperature range
0 to 70°C (32 to 158°F)

Bit Error rate (BER)
1E-12

EMC (Electromagnetic compatibility)
Supported

average uptime
217,330 hours

Protocols
IEEE Std 802.3 and 802.3ab, SFP MSA compliance
