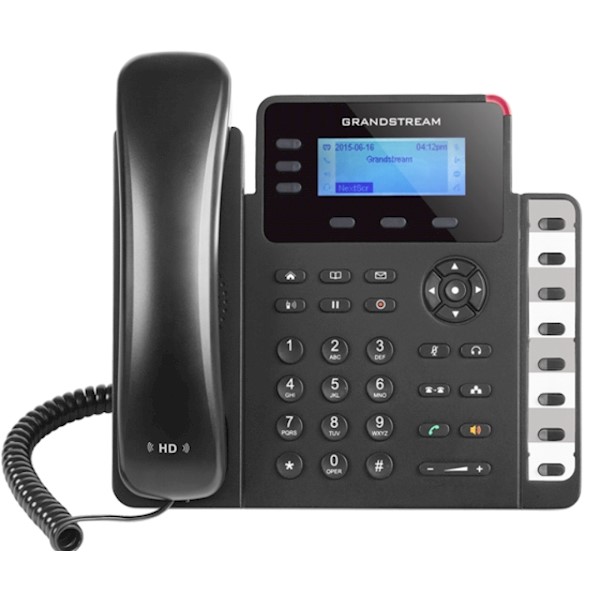

Grandstream GXP1630, Small-Medium Business HD IP Phone,3 line keys with dual-color LED,dual switched10/100/1000 Ethernet ports, HD (with power supply)

აღწერა

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Two switched Ethernet ports 10/ 100/ 1000 Mbps with automatic
recognition and built-in PoE support

Graphic display
Backlit graphic LCD display with a resolution of 132 x 64 dots (2.98’)

The keys
3 keys with two-color LED backlight and 3 SIP accounts, 3
context-sensitive programmable touch
keys, 5 keys (navigation, menu), 8 BLF keys, 13 special keys
with MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, pAGE/INTERCOM, RECORD,
HOME

Voice codecs
Support for G.711µ/A, G.722 (broadband), G.723, G.726-32, G.729 A/B,
iLBC, in-band and out-of-band DTMF signals (in audio, RFC2833, SIP
INFO)

Telephony functions
Call hold, Call transfer (unconditional transfer/no answer/busy),
call transfer to a fixed number, 4-way audio conference,
General call indication (SCA) / Call interception (BLA), downloadable
phonebook (XML, LDAP, up to 1000 entries), Call waiting
, call history (up to 200 recordings), auto-dial when the handset is off, answering machine,
mouse-click dialing, flexible number plan, "hot" workplace,
personal ringtones, server backup and switching in
case of failure

Headset jack
Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

HD audio sound
Yes, HD tube and speaker with broadband audio support

Base stand
Yes, 2 corner positions are available, it is possible to mount on the wall

Headset Jack
Yes

QoS
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Access control at the user and administrator level, authentication
MD5 and MD5-sess, 256-bit configuration file protected by AES,
TLS, SRTP*, HTTPS, 802.1x media access control

Multi-language support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc

Updating/ providing services
Firmware update via TFTP/HTTP/HTTPS, mass connection
using TR-069 or AES encrypted
XML configuration file, FTP/FTPS

Energy consumption and environmental efficiency
Universal Power Supply Connector Input 100-240VAC 50-60Hz;
Output +5VDC, 600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE)

Physical properties
Dimensions: 222.5mm (L) x 208.5mm (W) x 76.2mm (H) (with tube)
Device weight: 0.8 kg, Package weight: 1.2 kg
Operating temperature and humidity: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to
90% non-condensing

Contents of the delivery set
GXP1630 phone, handset with cord, base, universal power supply,
network cable, quick installation guide, brochure, GPL license

Compliance with the requirements
of the standards
FCC: Part 15 (CFR 47) Class BCE : EN55022 Class B, EN55024 Class B; EN61000-3-
2, EN61000-3-3, EN60950-1RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950;
AS/NZS 60950.1
