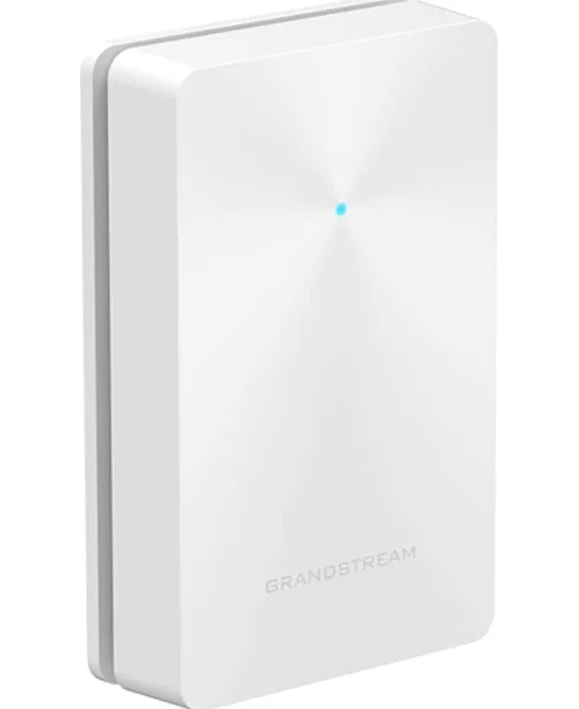

Grandstream GWN7624,In-Wall Access Point, 802.11ac, Wave-2

აღწერა

Support for working in ranges
Dual-Band

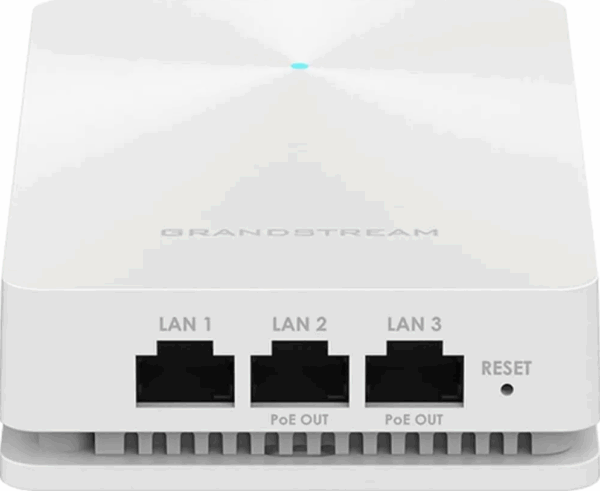

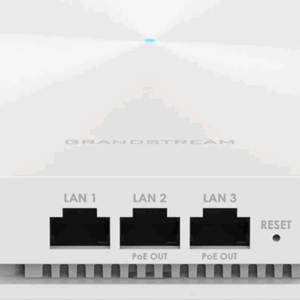

Ports
1 Gbit/s

The frequency of Wi-Fi operation
2.4GHz, 5.0GHz

Antenna Type
Internal, Omnidirectional

Number of RJ45 connectors
4

Max. Wi-Fi speed
1733Mb/s

Additionally
Support for MU-MIMO, Dual-Band

WiFi Settings
IEEE 802.11a/b/g/n/ac
5 GHz: up to 1733 Mbps
2.4GHz: up to 300 Mbps

Network interfaces
1x 10/100/1000M uplink Ethernet PoE/PoE+
2x 10/100/1000M Ethernet PSE
1x 10/100/1000M Ethernet

Interfaces
RJ-45

Support MIMO
2×2:2 2.4GHz (MIMO)
4×4:4 5GHz (MU-MIMO)

Wireless signal power
2.4G: 23dBm
5G: 25dBm

Coverage range
Up to 100 meters

Device management
The built-in controller can control 30 local GWN access points.
GWN.Cloud offers a free cloud-based management platform for an unlimited number of GWN access points.
GWN Manager offers a local software controller for 3,000 GWN access points.

Bracing
On the wall

Buttons
Reset

Indicators
1 three-color LED for device tracking and status indication

Certification
FCC, CE, RCM, IC, UKCA

Antenna parameters
two dual frequency internal antennas
2.4GHz, 3 dBi gain;
5 GHz, 5 dBi gain

Environmental parameters
Operation: -10°C to 50°C
Storage: -30°C to 60°C
Humidity: 5% to 95% non-condensing

Power supply
Support 802.3az
PoE 802.3af/802.3at

Power consumption
Maximum output power of PSE per port: 6W
Maximum power consumption: 25W

Equipment
GWN7624 Wall-mounted Wireless Access Point 4 Screws (3.5*26 KB), Quick installation Guide

Colour
White

Sizes
135 x 86 x 38.5 mm

Other
System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3
