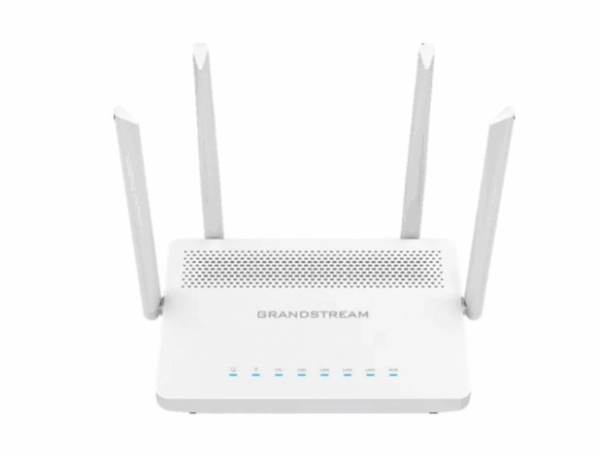

Grandstream GWN7052 Gigabit VPN router

აღწერა

Type of router
Wireless

Ports
1 Gbit/s

Number of RJ45 connectors
5

Additionally
MU-MIMO support

The form factor
Desktop

Support for working in ranges
Dual-Band

WiFi Settings
IEEE 802.11 a/b/g/n/ac
5 GHz: up to 867 Mbps
2.4GHz: 300 Mbps

The frequency of Wi-Fi operation
2.4GHz, 5.0GHz

Antenna Type
External

WAN Parameters
DHCP, Static IP, PPPoE, PPTP, L2TP

Max. Wi-Fi speed
867Mb/s

Network interfaces
1 x WAN Gigabit Ethernet
4 x LAN Gigabit Ethernet

Other interfaces
1 x USB 2.0

Antenna Parameters
4 independent external antennas, 2 each for
the 2.4GHz band, 5.0 dBi gain
5 GHz, 5.0 dBi gain

System characteristics
128 MB RAM
30,000 NAT sessions

Device management
The integrated GWN7052 controller controls the router itself and GWN access points (up to 30). The free GWN. Cloud cloud platform supports the management of an unlimited number of GWN7052 routers and GWN access points

Safety
WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking download and blocking of critical data/controls using digital signatures, a unique security certificate and a random default password for each device

Protocol support
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Buttons
Reset

Indicators
One three-color LED and seven single-color LEDs for device monitoring and status indication

Environmental parameters
Operating temperature: 0 to 50°C
Storage temperature: -10 to 60 °C
Humidity: 10 to 90%, non-condensing

Power supply
Input: 100-240 VAC; 50-60 Hz
Output: DC12V, 1 A

Power consumption
12 Watts

Equipment
GWN7052 router, Universal power adapter, Network cable, Quick installation guide

Colour
White

Weight
375 g

Sizes
205 × 130 × 35.5 mm
