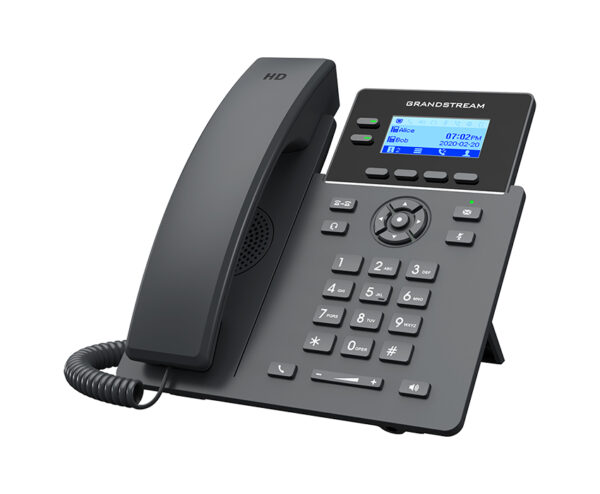

Grandstream GRP2602G, Carrier-Grade IP Phones, 2 lines, 4 SIP accounts, Dual 10/100/1000 Mbsps Ethernet ports, PoE, HD audio (With PSU)

აღწერა

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR- 069, SNMP, 802.1x,
TLS, SRTP*, IPv6

Network interfaces
– Two switched 10/100 Mbps Ethernet ports with auto-detection, built
-in PoE support (only in the GRP2602P model)
– Two switched 10/100/1000 Mbps Ethernet ports with auto-detection,
built-in PoE support (only in the GRP2602G model)

Wi-Fi
GRP2602W, dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
132 x 48 dots (2.41 inches’) backlit graphic LCD display

Function buttons
2 line buttons with two-color LEDs and support for 4 SIP accounts, 4 XML
context-sensitive on-screen buttons, 5 buttons (navigation,
menu). 8 special function buttons for: MESSAGE (with LED
indicator), TRANSLATION, HEADSET, MICROPHONE MUTE, SEND /
REDIAL, SPEAKERPHONE, VOLUME +, VOLUME

Additional ports
RJ9 headset jack (EHS support for Plantronics, Jabra and Sennheiser headsets)

Voice codecs and features
Support G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- and
out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB

Telephony functions
Hold, Transfer, Forwarding, 5-way Conference, Call Parking
, Call Interception, Shared Line (SCA)/parallel call indication (BLA),
downloadable phonebook (XML, LDAP, up to 2000 entries), call waiting
, call log (up to 800 entries), auto-dial when you pick up the handset, auto-answer, clickto-dial, flexible number plan, hot table system, personalized
ringtones and music on hold, backup server and fault tolerance

HD Audio
Yes, HD quality in the handset and speaker with broadband sound support

Footing
Yes, 1 position (45°) available, wall mounting option (*
Wall mounting bracket sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password, authentication based on
MD5 and MD5-sess, configuration file with 256-bit AES encryption, SRTP*, TLS,
802.1x media access control, secure boot

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Automatic configuration
Firmware update via FTP/TFTP/HTTP/HTTPS, group configuration using
GDMS (Grandstream Device Management System), TR-069 or XML
configuration file with AES encryption

Power and energy efficiency
Universal power supply
Input 100-240V AC 50-60Hz;
Output +5V post. current, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (only
for GRP2602P/GRP2602G model)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
Phone model GRP2602, tube with wire, base, universal power
supply (only for model GRP2602/GRP2602W/GRP2602G), network cable, quick
guide

Sizes
Dimensions: 208mm (L) x 180mm (W) x 63.4mm (H) (with tube)
Device weight:670g; Package weight: 880g (GRP2602/GRP2602W/GRP2602G), 830g
(GRP2602P)

Compliance with standards
GRP2602/GRP2602P/GRP2602G
FCC: Part 15 Class B; FCC Part 68 HAC;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS CISPR32;
AS/NZS 62368.1; AS/CA S004;
IC: ICES-003; CS-03;

Compliance with standards
GRP2602W
FCC: Part 15 Subpart B, Class B; FCC Part 15 Subpart E,15.407; FCC Part 68;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; ETSI EN 301 893;
RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004;
IC: RSS-Gen; ICES-003; CS-03.
