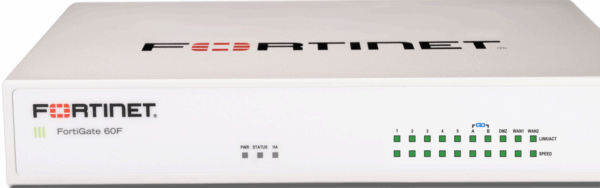

FortiGate-60F 10 x GE RJ45 ports (including 7 x Internal Ports, 2 x WAN Ports, 1 x DMZ Port).

აღწერა

System Performance — Enterprise Traffic Mix

IPS Throughput 1.4 Gbps

NGFW Throughput 1 Gbps

Threat Protection Throughput 700 Mbps

System Performance

Firewall Throughput (1518 / 512 / 64 byte UDP packets) 10/10/6 Gbps

Firewall Latency (64 byte UDP packets) 3.3 μs

Firewall Throughput (Packets Per Second) 9 Mpps

Concurrent Sessions (TCP) 700 000

New Sessions/Second (TCP) 35 000

Firewall Policies 2000

IPsec VPN Throughput (512 byte) 6.5 Gbps

Gateway-to-Gateway IPsec VPN Tunnels 200

Client-to-Gateway IPsec VPN Tunnels 500

SSL-VPN Throughput 900 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200

SSL Inspection Throughput (IPS, avg. HTTPS) 630 Mbps

SSL Inspection CPS (IPS, avg. HTTPS) 400

SSL Inspection Concurrent Session (IPS, avg. HTTPS) 55 000

Application Control Throughput (HTTP 64K) 1.8 Gbps

CAPWAP Throughput (HTTP 64K) 8 Gbps

Virtual Domains (Default / Maximum) 10 / 10

Maximum Number of FortiSwitches Supported 24

Maximum Number of FortiAPs (Total / Tunnel Mode) 64 / 32
