Ajax SoloButton (2-gang) [55] white

აღწერა

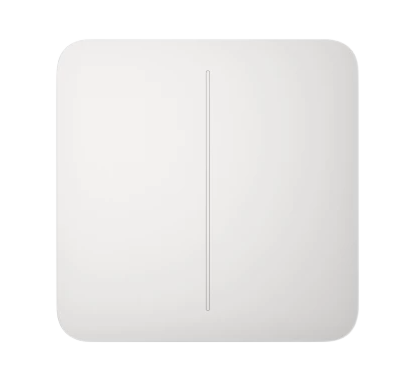

Ajax SoloButton (2-gang) White – Button for two-key switch

Radio frequency ranges
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz

Maximum Effective Radiated Power (ERP)
up to 20 MW

Radio signal modulation
GFSK

Radio communication range
up to 1100 m

Scenarios
alarm
response response to changing the security mode
scheduled activation
response to pressing another LightSwitch

The power of the switched device
is from 5 to 600 watts

Illumination at night
Optional, you can disable it in the device settings in the Ajax application.

Fraud protection
device authentication

Fraud protection
device authentication

Connection loss detection
from 36 seconds

Supply voltage
230 V, 50 Hz

Average consumption
up to 200 MW

Maximum switching power
600 Watts

Current protection
greater than 2.6 A

Temperature protection
above +60°C

Operating temperature range
from -10°C to +40°C

The permissible humidity
is up to 75% without condensation

Protection class
IP20

European type circuit breaker form factor (55)

Relay
LightCore (1-gang) — 45.95 g
LightCore (2-gang) — 53.9 g
LightCore (2-way) — 48.34 g

Frames
Frame (2 seats) — 16.13 g
Frame (3 seats) — 22.12 g
Frame (4 seats) — 28.12 g

Buttons
SoloButton (1-gang / 2-way) — 44.5 g
SoloButton (2-gang) — 45.75 g
CenterButton (1-gang / 2-way) — 30.97 g
CenterButton (2-gang) — 31.97 g
SideButton (1-gang / 2-way) — 31.56 g
SideButton (2-gang) — 32.73 g

Relay
LightCore (1-gang) — 76.3 × 72.3 × 29.2 mm
LightCore (2-gang) — 76.3 × 72.3 × 29.2 mm
LightCore (2-way) — 76.3 × 72.3 × 29.2 mm

Frames
Frame (2 seats) — 82.75 × 153.48 × 6.3 mm
Frame (3 seats) — 82.75 × 224.48 × 6.3 mm
Frame (4 seats) — 82.75 × 295.48 × 6.3 mm

Buttons
SoloButton (1-gang / 2-way) — 82.75 × 82.75 × 10.26 mm
SoloButton (2-gang) — 82.75 × 82.75 × 10.26 mm
CenterButton (1-gang / 2-way) — 82 × 70.53 × 10.26 mm
CenterButton (2-gang) — 82 × 70.53 × 10.26 mm
SideButton (1-gang / 2-way) — 82 × 76.19 × 10.26 mm
SideButton (2-gang) — 82 × 76.19 × 10.26 mm
