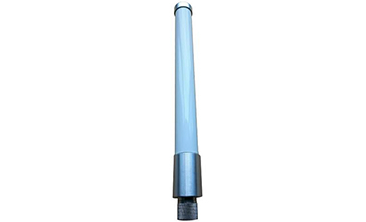

2.4GHz(4dBi) &5.150~5.850GHz(7dBi), Dual Band Omni Antenna, N-J,Outdoor

აღწერა

Frequency range
· 2400 MHz .. 2500 MHz
· 5150 MHz .. 5850 MHz

Polarization
Vertical

The gain is 4/7 dBi

The beam width in the horizontal plane (HBW)
is 360 degrees

The beam width in the vertical plane (VBW)
is 35/17 degrees

Ellipsoid in the horizontal plane (dB)
± 1.5 dB

Wave resistance
50 Ohms

Voltage Standing Wave Coefficient (VSWR)
≤ 2.0

Maximum power
100 Watts

Connector
N-connector of the "papa" type (pin)

Location of connectors
Below

Size (diameter × length)
28 × 400 mm (1.10 × 15.75 inches)

Antenna weight
0.2 kg (0.44 lb)

Outer shell material
Fiberglass

The color of the outer shell
White

Operating temperature
–40°C .. +70°C (–40°F .. +158°F)

The working humidity
is 5% .. 95%

Degree of moisture
protection IP65

Wind resistance
35 m/s (114.8 ft/s)

Resistance to salt mist
Resistance to dousing with a normal salt jet of 96 hours (GB/T 2423.17-2008)

Application scenario
Outdoors

Installation method
Direct installation
