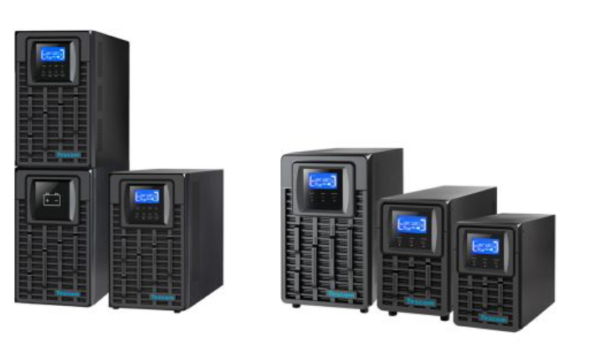

Tescom TEOS 106 series 6kVA On-line UPS

Description

Read full description below:

Full name:

Tescom TEOS 106 series 6kVA On-line UPS

Full description:

Brand
Tescom

Product Type
UPS

Row
Theos 106

Part number
TE106

Width x Depth x Height
31.8 x 19 x 36.9 cm

Weight
12 kg

Operating temperature range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Rated input current (max. load)
176-300 V AC (at 100% load)

Rated input voltage
220/230/240 V AC

The input phase
One stage

Output power (volts, amperes)
6000

Output power (kg-volt-ampere)
6

Output power (VA)
5400

Output power (kW)
5.4

The power factor
0,9

The peak factor
3:01

Rated output voltage
220/230/240 V AC

Frequency compatibility
46-54 Hz or 56-64 Hz (synchronized range)

Waveform (battery mode)
Pure sine wave

Battery Type
12 V/9 Ah

Battery recharge rate
9 hours of recovery to 90% capacity

LED indicators
AC mode, battery level, battery operation mode, fault indicators, load level

Relative humidity
from 0 to 95%, non-condensing

Audible noise
maximum 55 dBA at a distance of 1 m

Transfer time
4 ms (bypass inverter)

Additional info:

Tescom TEOS 106 series 6kVA On-line UPS with 16x12V/7Ah Battery
