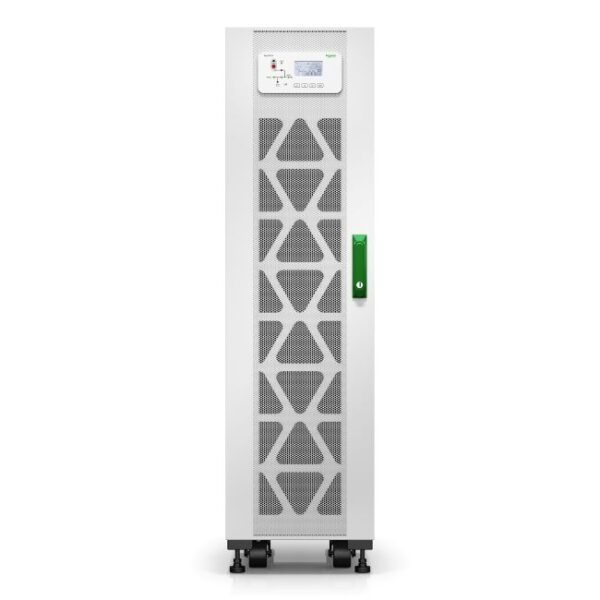

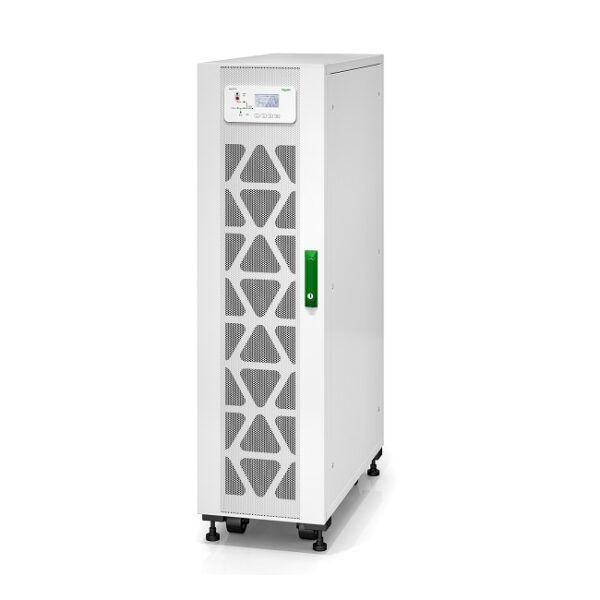

APC Easy UPS 3S 20kVA 400V
18676,61 ₾
Output power 20.0kW / 20.0kVA Maximum set power(W) 20.0kW / 20.0kVA Rated output voltage 400V 3PH Distortion of the output voltage shape Less than 3% Output frequency (synchroni…
- Description
- Additional information
Description
Read full description below:
Full name:
APC Easy UPS 3S 20kVA 400V
Full description:
Output power 20.0kW / 20.0kVA
Maximum set power(W) 20.0kW / 20.0kVA
Rated output voltage 400V 3PH
Distortion of the output voltage shape Less than 3%
Output frequency (synchronized with the power grid) 50 Hz, 60 Hz
Other output voltages 380, 415
Topology double transformation
KNI output voltage < 3% at linear load
Output voltage tolerance +/- 1.5%
Rated input voltage 400V 3PH
Input frequency 45-65 Hz
Input voltage range when operating from the mains 304-477V
The total harmonic distortion at the input is less than 3% at full load
Other input voltage values 380, 415
Maximum input current 37.0A
Input power factor under full load 0.99
Additional info:
Easy UPS 3S 20kVA 400V
Additional information
| Weight | 158 kg |
|---|---|
| Dimensions | 57 × 104 × 166 cm |
| Brand | APC |
| Weight | |
| PS | MK |
| Dimensions |
