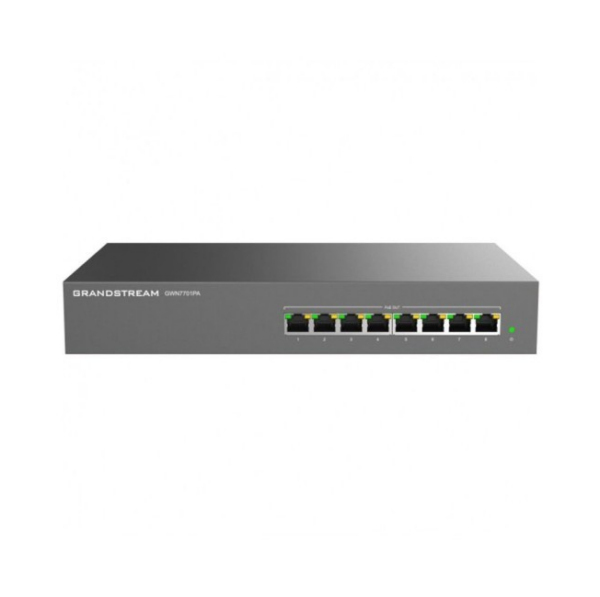

Grandstream GWN7701PA

Description

• PoE support

Read full description below:

Full name:

Grandstream GWN7701PA

Full description:

Switch Type
Unmanageable

Number of RJ45 ports
8

Number of PoE ports
8

Network interfaces
8x RJ45 10/100/1000Mbps

Compliance with network standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

The switching matrix
16 Gbps

MAC Address table
8K

Jumbo frame
9 KB

Additionally
PoE support, Rack mount

PoE Parameters
1-8 802.3 af/at ports Up to 30 watts per port, power budget: 145 Watts; Turning off the port with the lowest priority in case of overload. Priority: from port 8 to port 1

Certification
FCC, CE, RCM, IC, UKCA

Indicators
For each port: green-communication/activity For each port: yellow – PoE output On the device: green – power supply

Environmental parameters
Storage temperature: -40 to 60 °C Operating humidity: 10 to 90% (non-condensing) Storage humidity: 5 to 90%, non-condensing

Power supply
Internal (100-240 VAC, 50/60 Hz, 150 W)

Power consumption
6.7W @220V/50Hz (excluding PoE output)

Equipment
1 switchboard, 1 AC cable (10 A, 1.2 m), standard rack mount bracket, 4 rubber feet, 1 quick start guide

Colour
Gray

Sizes
280 x 180 x 44 mm

Weight
1.5 kg

Other
Automatic memorization and forgetting of the MAC address IEEE 802.3x Flow control Quality of Service 802.1p/DSCP FDB IGMP cleanup function: IGMP Fast-Leave IGMP Snoop Automatic memorization of routing ports Request update Participant port

Additional info:

Grandstream GWN7701PA, Unmanaged Network Switch, 8x GbE RJ45, 8x PoE 802.3 af/at, Internal PSU
